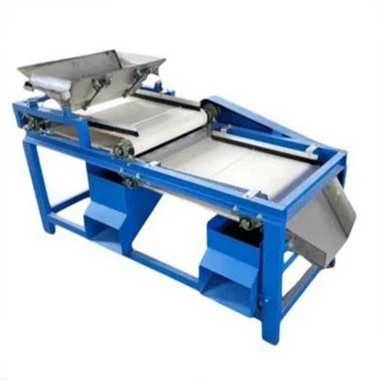

Dry High Intensity Magnetic SeparatorThe dry high intensity magnetic separator is a new type of dry separation equipment independently developed by our company after many years of market experience. It has applied for a national patent. -
![MXYP Magnetic Separator For Belt Conveyor]()
MXYP Magnetic Separator For Belt ConveyorThe MXYP magnetic separator conveyor is suitable for wet magnetic separation of multiple metal ores with a particle size of less than 3mm. It is also used for iron removal of coal, non-metallic ores, -
![QGK Magnetic Separator Conveyor Belts]()
QGK Magnetic Separator Conveyor BeltsIt is suitable for iron removal on magnetic ore conveyor belts such as raw ore, sinter, pellet ore, and lump ore. The QGK magnetic mineral iron removal system relies on its unique magnetic circuit -
![RCYQ Magnetic Separator Conveyor Belts]()
RCYQ Magnetic Separator Conveyor BeltsRCYQ Magnetic Separator Conveyor Belts Light Type Auto Cleaning Belt Permanent Magnetic Iron SeparatorExplosion-proof armored permanent magnetic tape iron remover.For iron separation in metallurgy, -
![Eddy Current Separator Machine]()
Eddy Current Separator MachineThe eddy current separators are suitable for processing and sorting various metal mixtures crushed by crushers and materials in the environmental protection industry. -
![QCG Drum Type Magnetic Separator]()

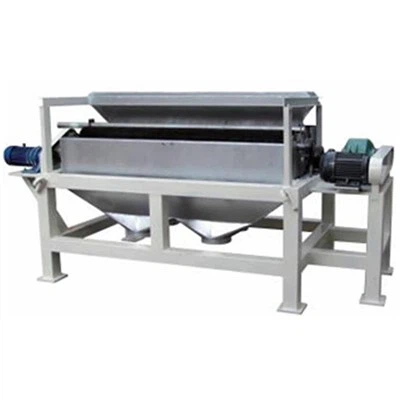

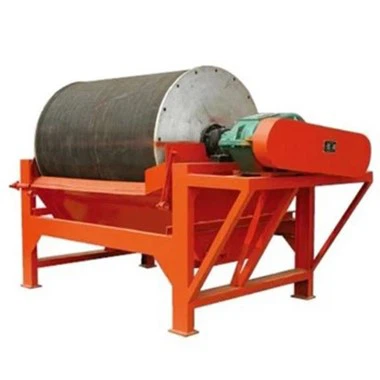

QCG Drum Type Magnetic SeparatorThe QCG drum type magnetic separator can achieve multiple structures or combinations of different magnetic field strengths. It is mainly used for roughing, sweeping and concentrating fine-grained -
![NCTB Roller Magnetic Separator]()
NCTB Roller Magnetic SeparatorNCTB Roller Magnetic Separator is specially designed to concentrate low-concentration slurries in the magnetic separation process to improve the effect.It is mainly used to concentrate coarse-grained -
![Disc Type Tailing Re Claimer Recovery Separator Machine]()
Disc Type Tailing Re Claimer Recovery Separator MachineHigh Recovery Rate Self-Cleaning Disc Type Tailing Re Claimer Recovery Separator Machine PriceThis product is suitable for the separation of magnetic minerals. It can concentrate and recover the

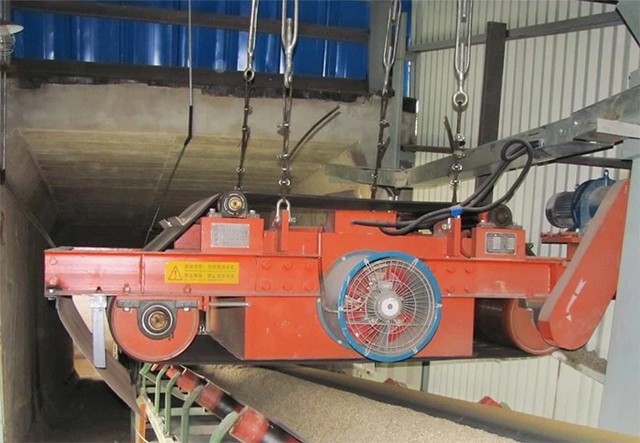

What Are Magnetic Separator Conveyors?
Magnetic separator conveyors are magnetic separation systems used on belt conveyors to remove tramp iron and other ferrous contamination from moving bulk material. They are typically installed above the belt (suspended), across the belt (cross-belt), or built into the conveyor itself (magnetic head pulley or magnetic conveyor).
In simple terms, the system creates a magnetic field that attracts magnetic particles while non-magnetic material continues along the belt. This separation step is often used as a protective measure in real production. Tramp iron can damage crushers and mills, tear belts, jam screens, and contaminate finished product. Removing it early helps reduce downtime and improve product consistency.
Because the separation runs continuously while material is moving, conveyor magnetic separators are a cost-effective option for many bulk handling lines. Once key site inputs are known, belt width, burden depth, suspension height, belt speed, and the typical size/amount of tramp iron, Great Magtech can recommend a suitable configuration for your operating conditions and industry.
Types of Conveyor Magnetic Separators
Technical Parameters of Magnetic Separator Conveyors

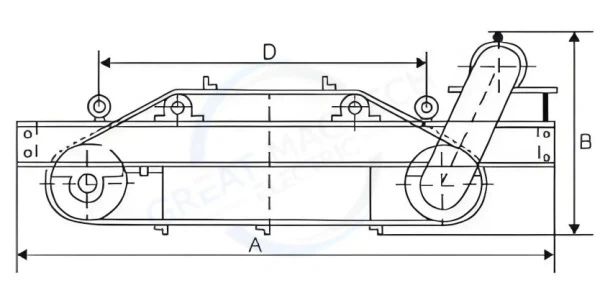

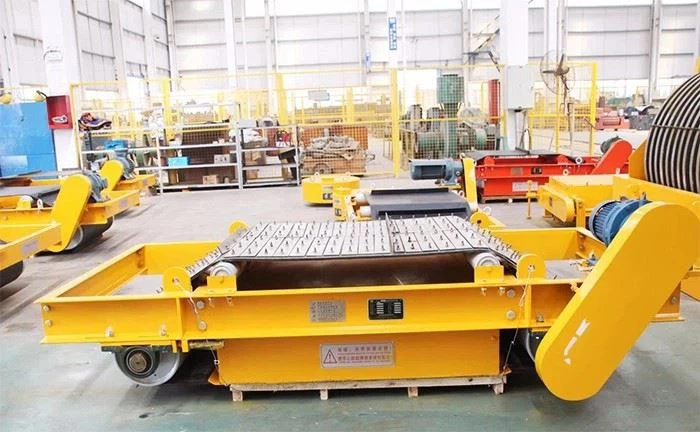

RCYD Self-Cleaning Permanent Magnetic Separators
|
|
|||||||||||||
| Model | Belt Width (mm) |
Suspension Height (mm) |
Magnetic field intensity (≥mT) |
Material depth (≤mm) |
Driving power (Kw) |
Belt speed (≤m/s) |
Work hour |
Weight Kg |
Appearance size (mm) | ||||
| A | C | B | E | D | |||||||||
| RCYD(C)-5 | 500 | 150 | 70 | 80 | 1.5 | 4.5 | Continuous | 750 | 1900 | 935 | 735 | 753 | 950 |
| RCYD(C)-6 | 600 | 175 | 70 | 120 | 1.5 | 920 | 2050 | 1030 | 780 | 840 | 1100 | ||
| RCYD(C)-6.5 | 650 | 200 | 70 | 150 | 1.5 | 1200 | 2050 | 1080 | 780 | 888 | 1200 | ||
| RCYD(C)-8 | 800 | 250 | 70 | 200 | 2.2 | 1400 | 2250 | 1280 | 796 | 1088 | 1300 | ||
| RCYD(C)-10 | 1000 | 300 | 70 | 250 | 3 | 2120 | 2650 | 1550 | 920 | 1335 | 1400 | ||
| RCYD(C)-12 | 1200 | 350 | 70 | 300 | 4 | 3350 | 2860 | 1720 | 1010 | 1515 | 1550 | ||
| RCYD(C)-14 | 1400 | 400 | 70 | 350 | 4 | 4450 | 3225 | 1980 | 1050 | 1755 | 1800 | ||
| RCYD(C)-16 | 1600 | 450 | 70 | 400 | 5.5 | 6200 | 3350 | 2160 | 1180 | 1850 | 1950 | ||
| RCYD(C)-18 | 1800 | 500 | 70 | 450 | 5.5 | 8100 | 3580 | 2450 | 1210 | 2130 | 2200 | ||
| RCYD(C)-20 | 2000 | 550 | 70 | 500 | 7.5 | 9700 | 3800 | 2700 | 1300 | 2410 | 2400 | ||

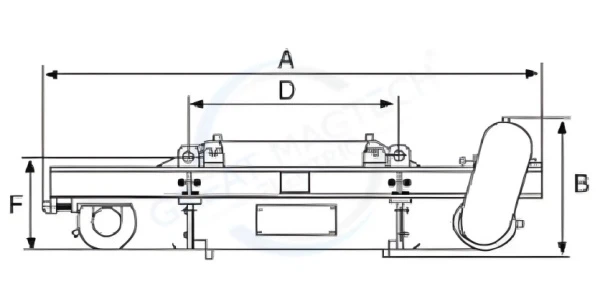

RCYK Armoring Permanent Magnet Separator
|
|
|||||||||||||||
| Model | Belt width(mm) | Suspension | Magnetic field intensity＞mT | Belt speed≤m/s | Absorb capacity(kg) | Operating mode | Driving power | Appearance size(mm) | Weight | ||||||
| Height(mm) | (kw) | A | B | C | D | E | F | (kg) | |||||||
| RCYK-5 | 500 | 150 | ≥70 | ≤4.5 | 0.1-36 | continuous | 1.5 | 1900 | 735 | 935 | 950 | 753 | 451 | 750 | |
| RCYK-6.5 | 650 | 200 | 2.2 | 2050 | 780 | 1030 | 1100 | 753 | 451 | 1200 | |||||
| RCYK-8 | 800 | 250 | 2.2 | 2350 | 796 | 1280 | 1300 | 1068 | 451 | 1400 | |||||
| RCYK-10 | 1000 | 300 | 3 | 2660 | 920 | 1550 | 1400 | 1335 | 451 | 2120 | |||||
| RCYK-12 | 1200 | 350 | 4 | 2860 | 970 | 1720 | 1550 | 1515 | 516 | 3350 | |||||
| RCYK-14 | 1400 | 400 | 4 | 3225 | 1050 | 1980 | 1800 | 1755 | 516 | 4450 | |||||
| RCYK-6.5 | T1 | 650 | 200 | 90 | ≤4.5 | 0.1-50 | continuous | 1.5 | 2160 | 1075 | 795 | 1200 | 890 | 451 | 1300 |
| T2 | 120 | 2.2 | 2160 | 1200 | 890 | 1420 | |||||||||
| T3 | 150 | 2.2 | 2310 | 1300 | 890 | 1750 | |||||||||
| RCYK-8 | T1 | 800 | 250 | 90 | 2.2 | 2350 | 1280 | 795 | 1300 | 1090 | 451 | 1920 | |||
| T2 | 120 | 2.2 | 2350 | 1300 | 1090 | 2180 | |||||||||
| T3 | 150 | 3 | 2520 | 1400 | 1090 | 2820 | |||||||||
| RCYK-10 | T1 | 1000 | 300 | 90 | 3 | 2660 | 1540 | 950 | 1400 | 1335 | 451 | 2350 | |||
| T2 | 120 | 3 | 2660 | 1400 | 1335 | 2700 | |||||||||
| T3 | 150 | 4 | 2760 | 1400 | 1335 | 3680 | |||||||||
| RCYK-12 | T1 | 1200 | 350 | 90 | 4 | 2900 | 1730 | 970 | 1600 | 1515 | 516 | 3250 | |||
| T2 | 120 | 4 | 2900 | 1600 | 1515 | 4100 | |||||||||
| T3 | 150 | 5.5 | 2900 | 1600 | 1515 | 5150 | |||||||||
| RCYK-14 | T1 | 1400 | 400 | 90 | 4 | 3225 | 1980 | 1180 | 1900 | 1750 | 516 | 4800 | |||
| T2 | 120 | 5.5 | 3225 | 1900 | 1750 | 5620 | |||||||||
| T3 | 150 | 5.5 | 3340 | 1900 | 1750 | 7450 | |||||||||

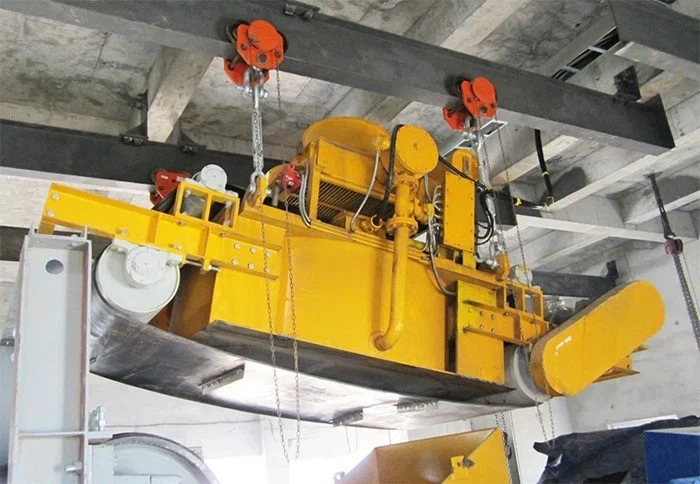

RCDF Self-Cleaning Oil-Cooling Electromagnetic Separator
|
|
|||||||||||||
| Model | Belt width (mm) | Suspension Height (mm) |
Material depth ≤ mm |
Excitation power ≤ kw |
Magnetic Intensity ≥ mT |
Driving power ≤ Kw |
Belt speed ≤ m/s |
Weight (kg) | Appearance size mm | ||||
| A | B | C | D | E | |||||||||
| RCDF-5 | 500 | 150 | 100 | 1.2 | 60 | 1.5 | 4.5 | 1100 | 1900 | 900 | 800 | 650 | 1050 |
| RCDF-6 | 600 | 180 | 130 | 1.8 | 60 | 1.5 | 1500 | 2050 | 1000 | 850 | 700 | 1170 | |
| RCDF-6.5 | 650 | 200 | 150 | 2 | 70 | 1.5 | 1800 | 2165 | 1050 | 900 | 750 | 1270 | |
| RCDF-8 | 800 | 250 | 200 | 3 | 70 | 2.2 | 2500 | 2350 | 1150 | 970 | 810 | 1420 | |
| RCDF-10 | 1000 | 300 | 250 | 4.5 | 70 | 3 | 3550 | 2660 | 1400 | 1080 | 810 | 1580 | |
| RCDF-12 | 1200 | 350 | 300 | 6.5 | 70 | 4 | 4650 | 2860 | 1500 | 1200 | 940 | 1780 | |
| RCDF-14 | 1400 | 400 | 350 | 8.5 | 70 | 4 | 6290 | 3225 | 1945 | 1300 | 940 | 1950 | |
| RCDF-16 | 1600 | 450 | 400 | 13 | 70 | 5.5 | 7850 | 3550 | 2010 | 1400 | 940 | 2180 | |
| RCDF-18 | 1800 | 500 | 450 | 18 | 70 | 5.5 | 9100 | 3650 | 2400 | 1500 | 940 | 2315 | |
| RCDF-20 | 2000 | 550 | 500 | 20 | 70 | 5.5 | 9500 | 3850 | 2800 | 1600 | 940 | 2400 | |

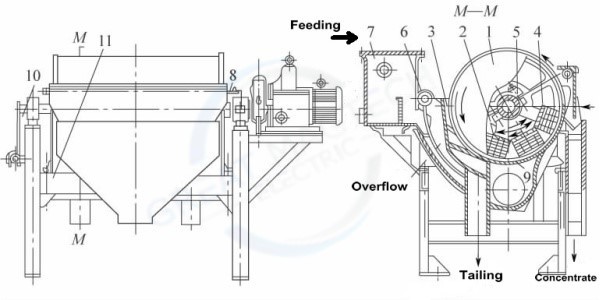

NCTB Concentrated Dehydration-Wet Type Drum Magnetic Separator
|
|
|||||||
| Model | Cylinder Size (cylinder diameter × cylinder length)mm |
Magnetic Induction Intensity on Cylinder Surface |
Processing Power | Motor Power (Kw) |
Cylinder Speed (r/min) |
Total Machine Weight (Kg) |
|
| t/h | m3/h | ||||||
| NCTB-918 | 900 x 1800 | According to Ore Grade, Determine the Magnetic Induction Intensity | 25-45 | 70-120 | 4 | 26 | 3300 |
| NCTB-1018 | 1050 x 1800 | 40-60 | 130-200 | 5.5 | 22 | 4300 | |
| NCTB-1021 | 1050 x 2100 | 50-70 | 150-240 | 5.5 | 22 | 4900 | |
| NCTB-1024 | 1050 x 2400 | 60-80 | 160-280 | 5.5 | 22 | 5600 | |
| NCTB-1030 | 1050 x 3000 | 80-120 | 240-400 | 7.5 | 21 | 7500 | |
| NCTB-1218 | 1200 x 1800 | 60-75 | 160-280 | 11 | 17 | 5900 | |
| NCTB-1224 | 1200 x 2400 | 80-110 | 240-380 | 11 | 17 | 6800 | |
| NCTB-1230 | 1200 x 3000 | 100-140 | 260-400 | 11 | 17 | 8200 | |
| NCTB-1236 | 1200 x 3600 | 120-160 | 300-550 | 15 | 17 | 9200 | |
| NCTB-1240 | 1200 x 4000 | 130-170 | 300-600 | 15 | 17 | 10500 | |
| NCTB-1245 | 1200 x 4500 | 150-200 | 380-660 | 15 | 17 | 12000 | |
| NCTB-1530 | 1500 x 3000 | 100-180 | 280-480 | 11 | 14 | 11000 | |
| NCTB-1540 | 1500 x 4000 | 150-200 | 320-540 | 15 | 14 | 13500 | |
| NCTB-1545 | 1500 x 4400 | 180-240 | 400-650 | 18.5 | 14 | 16500 | |
| NCTB-1550 | 1500 x 5000 | 210-280 | 500-750 | 18.5 | 14 | 19800 | |
For more information or to request technical drawings without watermarks, please click the button below to contact our sales team.
Features of Conveyor Magnetic Separators
Continuous Separation on the Conveyor: Captures ferrous metal while material is in motion, helping protect crushers, mills, and screens.
Multiple installation styles: suspended overband, cross-belt, head pulley, or integrated magnetic conveyor to fit different layouts.
Self-Cleaning or Manual Cleaning Options: Self-cleaning designs support higher contamination levels and longer run time with less labor.
Stable Performance for Tough Sites: Designed for dusty, heavy-duty environments with simple, practical maintenance access.
Model Flexibility: Permanent magnet or electromagnetic designs can be matched to your duty cycle and separation strength needs.
OEM Customization: Mounting method, discharge, belt width match, and magnetic package selection can be adapted to your line.
Magnetic Separation in Mineral Processing
Magnetic separation utilizes powerful magnets to pull out ferrous metal contaminants from a product line, trapping them against the face of the magnet and ensuring they cannot re-enter the product stream. The strength of the magnetic field means that continued product flow, no matter how rapid, will not be able to dislodge the ferrous material from where it has been initially trapped. GME offers magnetic separation equipment suitable for heavy-duty applications, with rugged construction designed for handling large amounts of material.
Metal detection systems generate an electromagnetic field that material flows through, sensing and rejecting any ferrous or non-ferrous metal that is hidden within the product. When a magnetic separator cannot remove a non-ferrous contaminant, such as aluminum, a metal detector can sense this metal and remove the contaminated section of the product from the greater flow of operations.
How to Choose the Right Magnetic Separator Conveyors
Confirm What You Need to Remove
If the problem is tramp iron (bolts, rebar, scrap steel), a conveyor magnetic separator is the right tool. If you need to detect non-ferrous metal (aluminum, copper, stainless steel fragments), plan to pair the magnet with a metal detector.
Match the Separator Type to the Job
Suspended Overband Magnet: A general protection choice for most bulk lines.
Self-cleaning Cross-belt Magnet: Better when tramp iron is frequent, and you want continuous discharge with less labor.
Magnetic Head Pulley / Magnetic Pulley: Best when you want built-in separation at the discharge end with a compact layout.
Magnetic Conveyor: Used when you need controlled separation as material leaves the belt.
Size It to Real Conveyor Conditions
Your selection should be based on belt width, burden depth (material layer thickness), belt speed, suspension height/clearance, and the typical tramp iron size. Thick burden and higher speed usually require stronger magnetic packages or smarter placement (such as over-trajectory at transfer points).
Decide on Cleaning and Maintenance
High contamination lines usually benefit from self-cleaning designs. If tramp iron is occasional, manual cleaning may be acceptable.
If you share belt width, belt speed, burden depth, installation clearance, and typical tramp iron size, Great Magtech can recommend the most practical model and mounting style.
Why Choose GME Magnetic Separation?
A conveyor magnetic separator only helps if it matches your line. If the belt is wide, the burden is thick, or the clearance is tight, a “standard” unit can miss tramp iron or create constant cleaning work.
Great Magtech builds magnetic separator conveyors for real site conditions. We can recommend the right style—suspended overband for general protection, self-cleaning cross-belt for high contamination, or a magnetic head pulley when you want a compact solution at the discharge end. For OEM projects, we can adjust mounting brackets, discharge method, and magnetic package selection to fit your belt width, belt speed, burden depth, and installation space.
What you get is a setup that’s easier to install, easier to maintain, and more stable in long runs. Send your basic conveyor data and material details, and we’ll propose a configuration that works on your line, not just on paper.
FAQs
Q: Can it work on an inclined conveyor?
A: Yes. The separator can be installed to match the conveyor angle, as long as the mounting clearance and discharge path are properly arranged.
Q: Do I need a metal detector as well?
A: If you need to catch non-ferrous metal or stainless fragments, a metal detector is a good complement. Many lines use a magnet for ferrous removal and a detector for broader metal control.
Q: Which type should I choose: suspended overband or self-cleaning cross-belt?
A: Suspended overband is a solid general option when tramp iron is occasional. A self-cleaning cross-belt is better when contamination is frequent, and you want continuous discharge with less manual cleaning.
Q: Where should it be installed for best performance?
A: Common positions include above the belt on the main conveyor, over the discharge trajectory at transfer points, or at the discharge end using a magnetic head pulley—depending on space and contamination risk.
Q: How often does it need cleaning?
A: That depends on the contamination level. High-contamination lines usually benefit from self-cleaning designs. For lower contamination, manual cleaning may be sufficient.
Q: Can you customize mounting and discharge for OEM projects?
A: Yes. Common OEM options include mounting brackets, discharge method, magnetic package selection, and interface dimensions to fit your conveyor layout.
