Magneti Neodim Strong Magnets for filters magnetic separators

Features of Magneti Neodim Strong Magnets
●Material: Neodym magnet,Filtermagnet,NdFeB magnet
●Specification: Customized as per client’s design
●Grade: N50 Mgenerator magnet
●Max. Working Temp.: 100°C
●High performance and cost effective
●Fast delivery and great service
●OEM supported

Advantages of Strong Magnets
1.High coercive force and High Consistency
The Cpk of Remanence (Br) and Intrinsic Coercive Force (Hcj) are much higher than 1.67. The consistency of the surface magnetic field and magnetic flux can be controlled at +/-1%.
2. Low Temperature Coefficiency:
Reversible Temperature Coefficients Br<-0.1%ºC-1,Hcj<-0.45%ºC-1;
3. Low Weight Loss:
The weight loss to corrosion resistance≤2.0mg/cm2(130ºC, 0.26Mpa, 95%RH, 20days)
4. High Anti-corrosion:
In Salt- Spray testing, Nickel-Copper-Epoxy coating is typically more than 1000 hours.

Performance of N50M Strong Magnets

Grade	Remanence (Br)		Coercive Force (Hcb)		Intrinsic Coercive (Hcj)		Max Energy Product (BH)max		Working Temp. Tw(°C)
	mT	KGs	KA/m	KOe	KA/m	KOe	KJ/m³	MGOe	L/D=0.7	L/D=0.2	L/D=0.9
									PC=2.17	PC=0.47	PC=0.22
N50M	1.40-1.44	14.0-14.4	≥1058	≥13.4	≥1114	≥14	382-406	48-51	≤100	≤40	≤30


Application of Strong Magnets

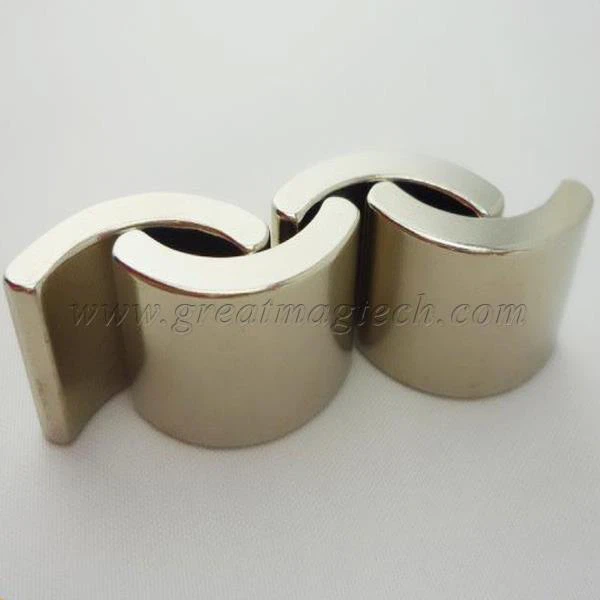

Arc magnet is usually assembled into magnetic drum separators. In this separator, the rotatory drum in the magnetic field captures the ferrous material whereas non ferrous falls free from the drum into the cleaned material flow. Such separators are available both in single or double drum configuration.
The magnetic drum separator is ideal in chemical, food industry, recycling and other manufacturing applications.
