Shuttering magnet (prescast concrete magnet)is widely used on tilting platform to prefabricated standard concrete slabs or walls. It is quite convenient and flexible to make the installation of formwork in short time with the magnet boxes.Used for production, construction of concrete magnets for construction magnets.
| Item |
L mm |
W mm |
H mm |
LI mm |
L2 mm |
L3 mm |
HI mm |
H2 mm |
H3 mm |
M | Pull Force ≥kg |
| GME-450 | 170 | 60 | 40 | 67.5 | 67. 5 | -- | 73 | 66.5 | -- | M12 | ≥450 |
| GME-600 | 170 | 60 | 40 | 67.5 | 67. 5 | -- | 73 | 66.5 | -- | M12 | ≥600 |
| GME-600S-Step | 200 | 60 | 40 | 72.5 | 97. 5 | 42 | 73 | 66.5 | 10 | M12 | ≥600 |
| GME-800S | 190 | 95 | 43 | 67 | 93 | 50 | 80 | 73.5 | 10 | M12 | ≥800 |
| GME-900 | 280 | 60 | 40 | 122 | 122 | -- | 73 | 66.5 | -- | M12 | ≥900 |
| GME-900S | 195 | 95 | 43 | 67 | 98 | 50 | 80 | 73. 5 | 10 | M12 | ≥900 |
| GME-1000S-Step | 200 | 95 | 43 | 67 | 100 | 50 | 80 | 73. 5 | 10 | M12 | ≥1000 |
| GME-1350 | 320 | 90 | 60 | 135 | 135 | -- | 98 | 90 | -- | M16 | ≥1350 |
| GME-1350S-Step | 320 | 90 | 60 | 113 | 161 | 47 | 98 | 90 | 10 | M16 | ≥1350 |
| GME-1300 | 210 | 95 | 45 | 80 | 90 | 40 | 73 | 65 | 10 | M16 | ≥1300 |
| GME-1600 | 270 | 120 | 60 | 110 | 110 | -- | 98 | 90 | -- | M16 | ≥1600 |
| GME-1800 | 320 | 120 | 60 | 135 | 135 | -- | 98 | 90 | -- | M16 | ≥1800 |
| GME-2100 | 320 | 120 | 60 | 135 | 135 | -- | 98 | 90 | -- | M16 | ≥2100 |
| GME-2400 | 320 | 120 | 60 | 135 | 135 | -- | 98 | 90 | -- | M16 | ≥2400 |
|
GME-2600 |
320 | 120 | 60 | 135 | 135 | -- | 98 | 90 | -- | M16 |
≥2600 |

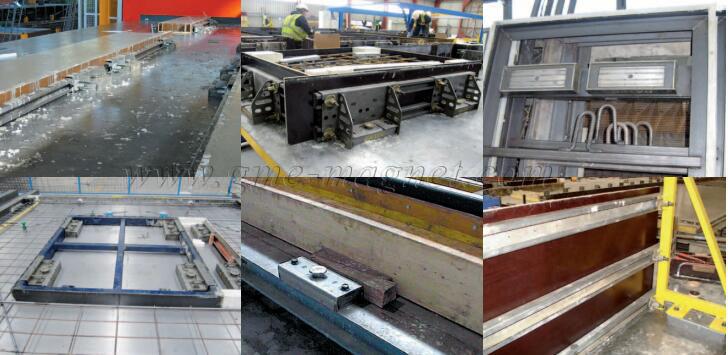

Application：
Advantages of using this Precast Concrete Magnet
1. Great flexibility (People could change the structure of formwork by adjust the Concrete Magnet.
2. Cost savings due to very short install times and enormous magnetic force (no power consumption).
3. Fully timber formwork consume large amount of expensive wood per year, by use concrete magnet and steel formwork will reduce the high cost of wood,thousands of trees could be protected as well.
4.Compared with wood formwork.concrete magnet and steel formworks have longer service life of formwork.
Important informations
Steel armature have special surface treatment. Neodymium Magnet has treated with nickel anti corrosion plating.
Concrete magnet is applied to concrete formwork or panel.Do not use concrete magnet directly on the concrete.
Concrete formwork system, looks like a black box with a push -pull knob and two hex bolts,Use suitable metal adapter to fix the hex nut.
The concrete magnet have strong magnetic force when catching to concrete formwork. leave hands under the concrete magnet is prohibite.
Delivery & Packing:
We well get your goods ready in 1 week .
Packing: woodenBox.
And we will send you release lever as gift ：
Owing to the past several years experiences on magnetic solutions for construction, our shuttering magnets products are already committed by customers from Germany, Australia, Dubai, New Zealand and other markets. Welcome to contact us for your special customized shuttering magnets.
