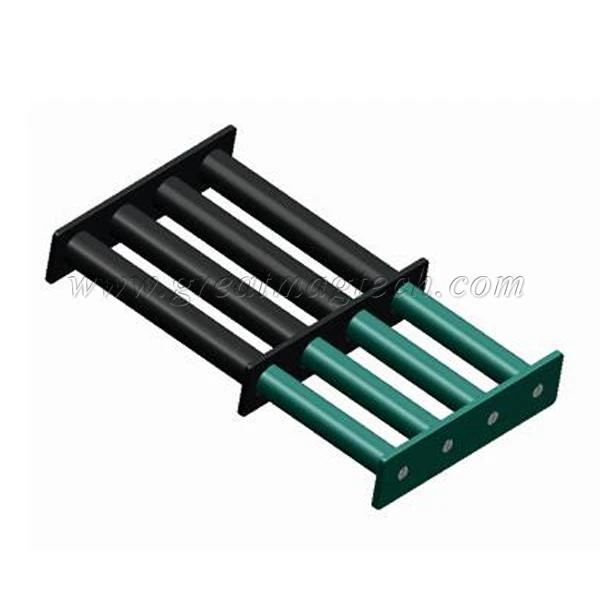

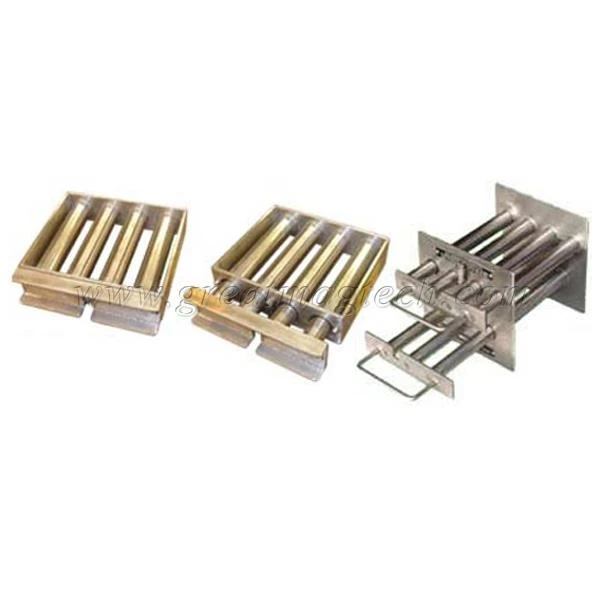

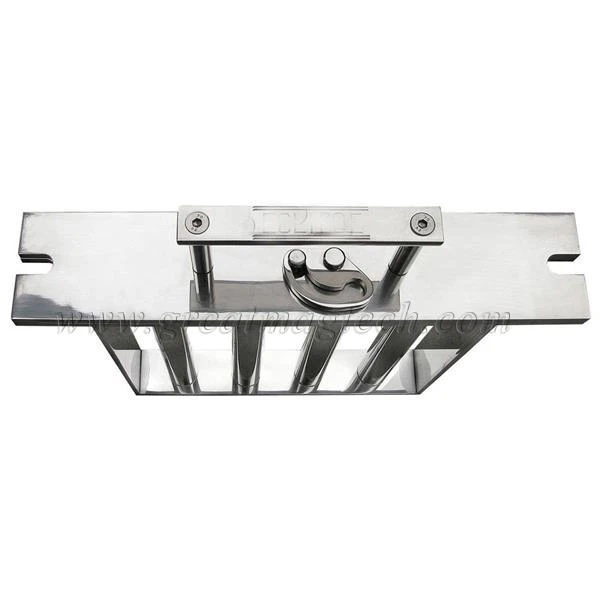

Easy-Clean Magnetic Grid Hopper Magnet
This Easy-clean design is more expediently to be cleaned. Just take out the magnetic core, the iron impurities will fall from the shell.
Features of Easy-Clean Magnetic Grid Hopper Magnet:
Standard magnetic grids are assembled with stainless steel frame and magnetic bars with a length of 25 mm diameter.
The surface of the frame and magnetic bar, 304 or 316L stainless steel, has a good corrosion resisting property without and less pollution, can be fine polished and meet the standard of food or pharmacy industry.
Standard working temperature ≤80℃, and maximum working temperature can reach 350℃ as required.
Easy-cleaning, grate with angle baffles or rod are available.
Specification of Easy-Clean Magnetic Grid Hopper Magnet:
| Shelf Size | Height A | Distance B | Distance H | Bar Quantity | Weight |
| MM | MM | MM | MM | PCs | KG |
| 100x100 | 100 | 100 | 40 | 2 | 1 |
| 150x150 | 150 | 150 | 40 | 3 | 2.2 |
| 200x200 | 200 | 200 | 40 | 4 | 3.7 |
| 250x250 | 250 | 250 | 40 | 5 | 5.5 |
| 300x300 | 300 | 300 | 40 | 6 | 8 |
| 350x350 | 350 | 350 | 40 | 7 | 10 |
| 400x400 | 400 | 400 | 40 | 8 | 13.5 |
| 450x450 | 450 | 450 | 40 | 9 | 17 |
| 500x500 | 500 | 500 | 40 | 10 | 20.5 |
Applications of Easy-Clean Magnetic Grid Hopper Magnet:
Magnetic Grate is for removing Ferrous contamination from store holders, drawers and hoppers. Please be aware that these grates are designed for low-abrasion materials.
