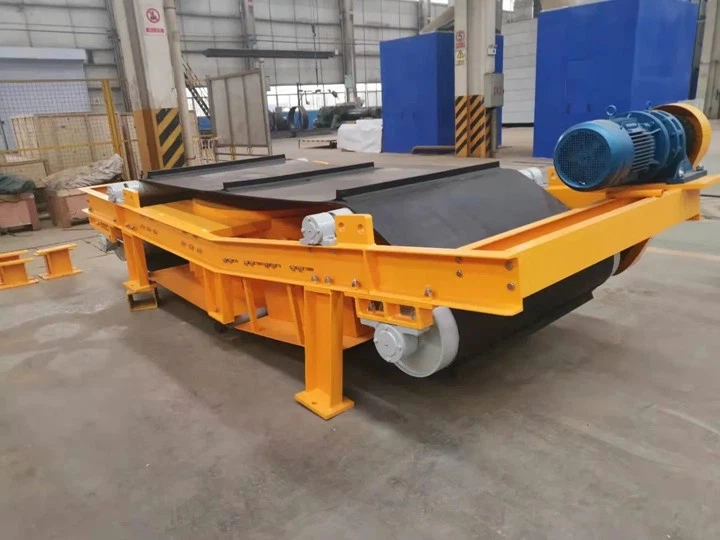

QGK Magnetic Separator Conveyor Belts

QGK Magnetic Separator Conveyor Belts Introduce:

Suitable for transportation of raw ore, sinter, pellets, lump ore and other magnetic ores.

The QGK magnetic mineral removal system relies on its unique magnetic circuit design to separate selected materials multiple times and remove ferromagnetic impurities from magnetic mineral materials with the minimum amount of ore, thereby protecting subsequent crushing equipment.

QGK Magnetic Separator Conveyor Belts Main Features:

The magnetic circuit is designed using computer simulation and the magnetic field design is unique, with large magnetic penetration depth and strong magnetic field.

Cooperate with the metal detector to form an automatic iron detection and removal system without iron leakage.

Intermittent excitation, low energy consumption, stable and reliable performance.

The sorting area adopts multi-stage repeated magnetic separation to ensure the minimum amount of ore during iron removal.

Automatic iron unloading, simple maintenance, drum-shaped structure, automatic deviation correction function, special fully sealed bearing seat, suitable for dusty on-site occasions, can achieve long-term trouble-free operation.

The product has good compatibility, complete functions, manual and centralized control functions, and can meet the requirements of various occasions.

QGK Magnetic Separator Conveyor Belts Operating Principle:

The QGK magnetic ore iron removal system is installed on the conveyor transporting materials. The metal detector is installed at the front. The belt-type electromagnetic iron remover is installed on the belt conveyor. The non-magnetic material distribution platform is behind the iron remover to catch the sucked-out iron parts and rectify them. The control cabinet connects the metal detector and the belt iron remover. When the metal detector detects an incoming iron signal, it transmits the signal to the rectifier control cabinet. The control cabinet starts the belt-type iron remover to unload the iron belt and excites it. The iron parts and some highly magnetic materials are sucked up under the main magnetic pole at the same time. The rotation of the unloading belt moves backward. Since the magnetic ore and iron parts are very different in shape and magnetism, after arriving at the magnetic sorting area and undergoing three sortings, most of the magnetic ore falls onto the conveyor belt again. , a small amount of material is brought to the non-magnetic material separation platform along with the iron parts for re-separation. After four sortings, a good iron removal effect with low ore content can be achieved.

QGK Magnetic Separator Conveyor Belts External Dimensions:

QGK Magnetic Separator Conveyor Belts Main Technical Parameters:

Service:

1. We will offer a suitable iron separator project according to your material and working environment for your reference.

2. We can do the test to confirm the iron separation effect for free.
