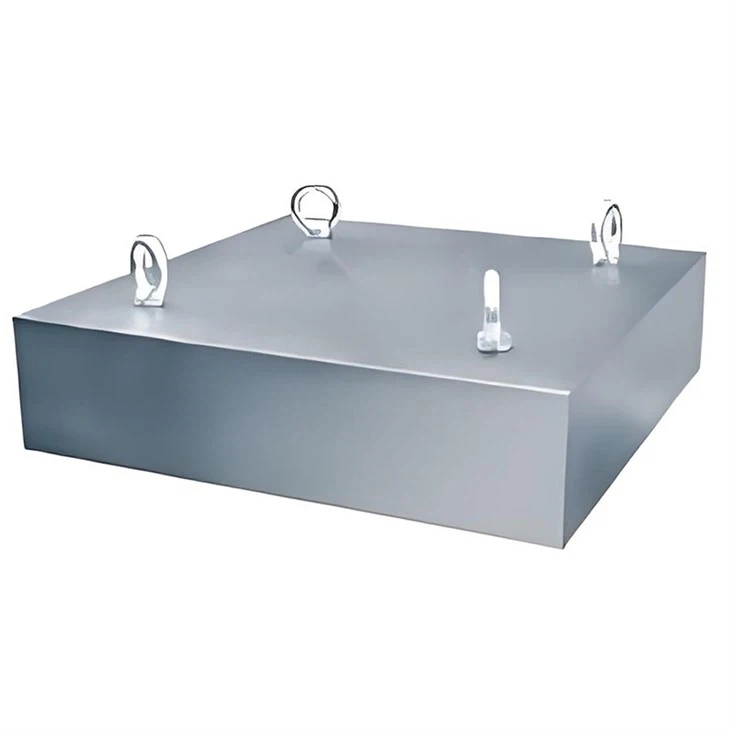

RCYB Suspension Permanent Magnetic Iron Separator

Product Description

This Suspension Magnet is used in conjunction with various belt conveyors and vibrating conveyors to remove 0.1-35kg of ferromagnetic substances mixed in bulk materials and is widely used in cement, thermal power generation, metallurgy, mining, chemical, Langrui, paper, coal, and other industries.

Feature

The magnetic circuit is designed by computer simulation, with high performance, high magnetic field strength, and strong suction.

High-performance NdFeB material is used as the magnetic source. High coercive force, not easy to demagnetize, demagnetization will not exceed 4% in eight years.

No energy consumption, energy saving, and environmental protection, continuous operation in harsh environments without failure.

Small size, lightweight, easy installation.

Product Parameters

Model	Belt Width  (mm)	Suspension Height (h=mm)	Material Depth(≤mm)	Magnetic field intensity ≥ mT	Belt Speed(≤m/s)	Weight(kg)	Appearance size(mm)
							L	D	H
RCYB-4	400	130	80	63	4.5	115	400	300	210
RCYB-5	500	150	100	63		180	500	400	230
RCYB-6	600	180	130	63		300	600	500	250
RCYB-6.5	650	200	150	65		450	650	600	250
RCYB-8	800	250	200	70		580	800	700	250
RCYB-10	1000	300	250	70		880	1000	800	250
RCYB-12	1200	350	300	70		1100	1200	1000	270
RCYB-14	1400	400	350	70		1700	1400	1300	270
RCYB-16	1600	450	400	70		2200	1600	1500	27

Product Application

RCYB suspension permanent magnetic separator is an iron-removing mechanism composed of a driving motor, drum, scraper belt, etc.  In the working process, the iron unloading mechanism automatically unloads the ferromagnetic material adsorbed by the unloading belt into the iron collecting box without manual cleaning by a power cut, realizing the automated iron removal.

Service

1. We will offer a suitable iron separator project according to your material and working environment for your reference.

2. We can do the test to confirm the iron separation effect for free.
