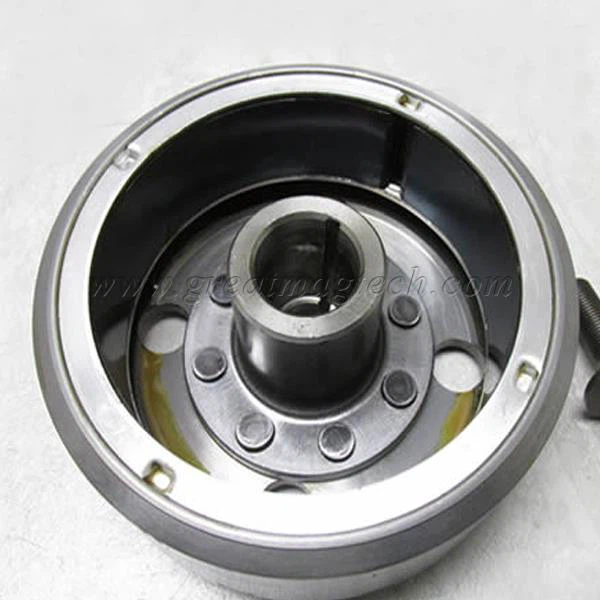

Magnetic Stator

Product Description

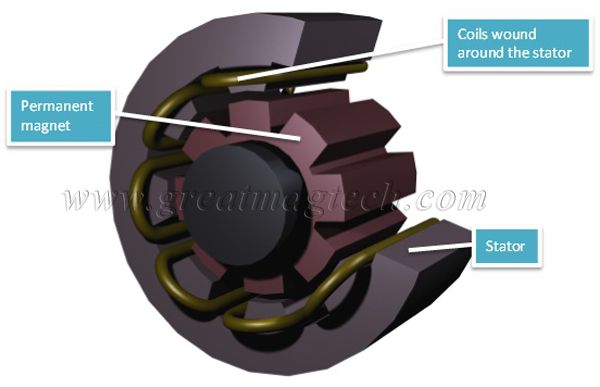

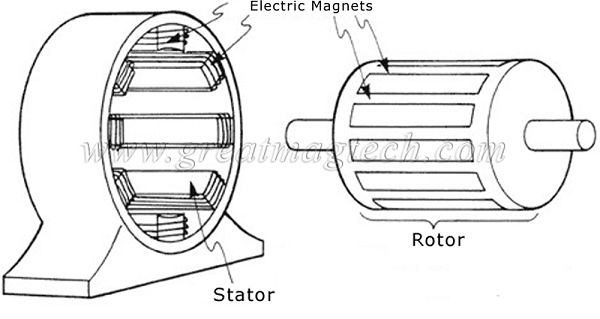

The Magnetic Stator is the stationary part of a rotary system, it is made of premium lamination materials and copper windings, which can reduce magnetic loss, improve your light's brightness, ignition efficiency, and voltage. Stator frame, stator core, and stator winding are the components of stator. The stator core carries the rotating magnetic field which induces because of the three-phase supply. The main function of the stator is to keep the magnetic field-aligned.

Advantages

The Magnetic Stator is an important part of the generator and starter motor. Depending on the structure of the rotating electric device, the stator can be used as a magnetic field magnet to interact with the armature to generate motion and receive the stator's influence from the magnetic field coil moving on the rotor. We can provide the product with different specifications, please feel free to contact us.

Specification

How it Works

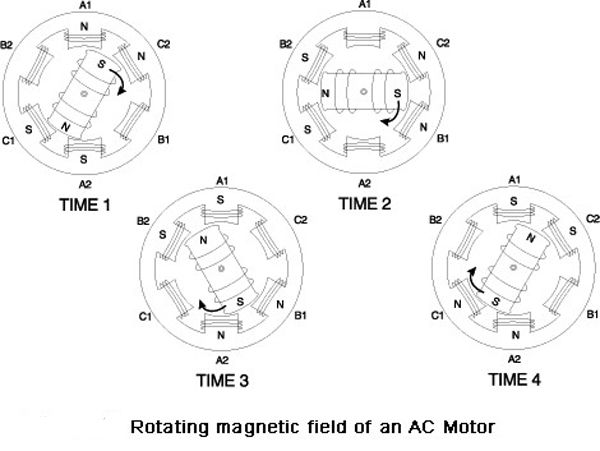

As shown below, the stator has six magnetic poles and the rotor has two poles. The S-pole of the rotor is attracted by the two N-poles of the stator and the two south poles of the stator attract the N-pole of the rotor. The polarity of the stator poles is changed, then the rotor is forced to rotate 60 degrees to line up with the stator poles. As each change is made, the opposite poles on the stator attract the poles of the rotor. Thus, as the magnetic field of the stator rotates, the rotor is forced to rotate with it.

Application

In a turbine, it comprises a blade or port for redirecting the fluid flow. Such devices include steam turbines and torque converters. In a mechanical siren, the stator contains a row or rows of holes allowing air to enter the rotor; the sound of the alarm can be changed by controlling the flow of air through the hole. The stator can be used for a wide range of effects to reduce the turbulence and rotational energy introduced by the axial turbo fan.

Company Instruction

Welcome to Great Magtech Electric Co., Ltd! We are specialized in producing magnets for 11 years, so we are glad to accept every challenge from customers.

If you are looking for more cost-effective magnets, you can try our products for your reference. Who knows? Maybe we are the right one you are looking for.
