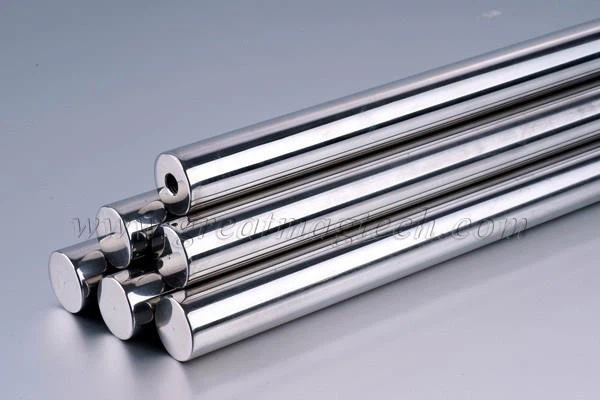

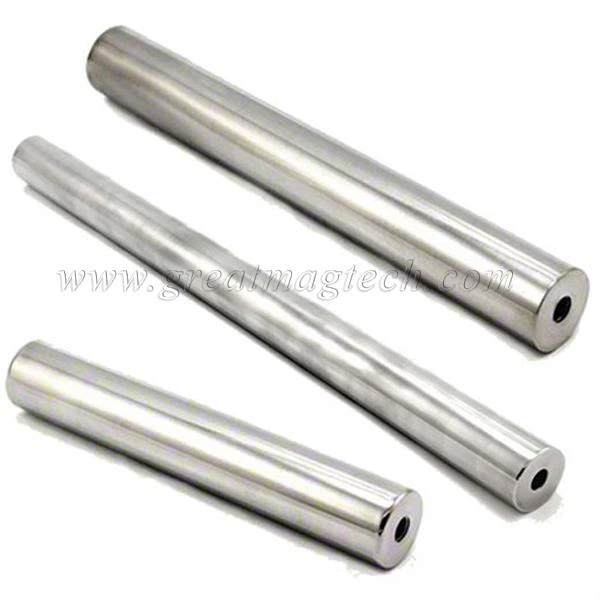

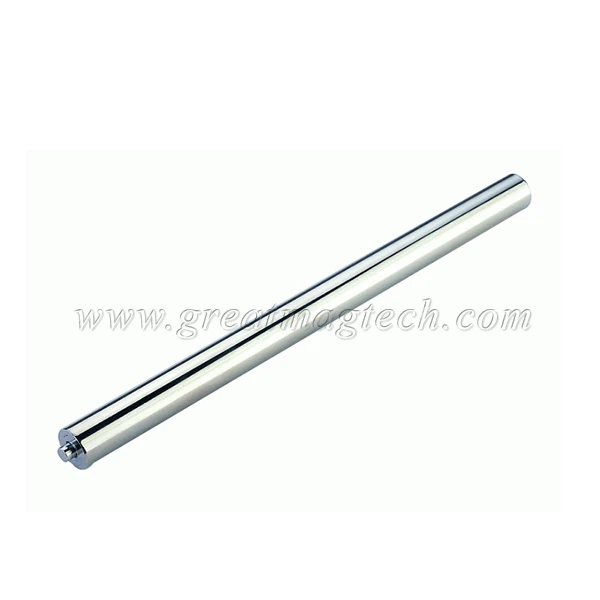

D-25mm Magnetic Bar Stainless Magnetic Tube12000 Gauss

Magnetic Bar:

Magnetic bars are the main part of different magnetic grate separators. They can effectively remove ferrous chips and metal particles from loosely packed, free flowing materials.

Applications:

Magnetic bar is use for iron removal from food products, chemical products, drugs, feedstuffs and etc.
The majority of Magnetic Bar contain NdFeB Rare Earth magnets but versions containing Ferrite magnets, SmCo Rare Earth magnets and AlNiCo magnets also exist. The NdFeB versions come as standard strength and high intensity strength as the two main options. They are all encased in a food quality stainless steel (usually SS304 but SS316 is also offered). By having a food quality stainless steel casing, the Separator magnet Bars are corrosion resistant and easy to clean.

Features:

Finishing: Well polishing and welding to meet food grade.
2. Material of shell: SS304, SS316 and SS316L seamless steel tube
3.Working Temperature: Standard working temperature is≦80℃, but if high temperature is required, we can offer up to 350℃ to meet your special applications
4. Various designs available. Standard type, Easy clean type, one layer, multilayer.
5. Also takes customer’s own magnetic grate designs.
6. Customer designs, specifications can be fulfilled.

Package and delivery:

You can make or modify you own separation system with Bunting Magnetic Bars. They are all constructed of durable 304 or316 stainless steel tubing and are available with tapped hole, threaded bar, or plain sealed end plugs. Each cartridge is filled with Ceramic, SmCo, Alnico, Neodymium or Neodymium High Intensity magnetic material. Custom lengths are available. Please inquiry to us anytime.
