Powerful Electromagnetic Chuck For Surface Grinder
Description of Powerful Electromagnetic Chuck For Surface Grinder:
Powerful electromagnet magnetic Chuck is used for holding onto magnetic materials for moderate intensity of grinding, the suction 100N/cm2. This magnetic chuck have high rigidity, stability and precision thermal variables is very small. Unique Coil design, make the sucker suction is very uniform, application to surface grinder.
Features of Powerful Electromagnetic Chuck For Surface Grinder:
1.Internal multiple insulation, protect the life of the coil.
2.Magnetic table is suitable for thin and small workpieces.
3.Magnetic table have good rigidity, high precision and waterproof structure. Magnetic force≥ 100N/cm2
4.Magnetic table can combine several together to use. Special sizes can be customized.
Working Performance:
1) Suction force: The size of the suction cup's holding force on the workpiece is the most important indicator that reflects the quality of the suction cup. GB/T 14534-93 Electromagnetic chuck stipulates that the suction force of a rectangular electromagnetic chuck is not less than 100 N/cm2, and 10% of the measuring points are allowed to have a suction force of not less than 50 N/cm2. The suction unevenness of the suction cup should not be greater than 80 N/cm2;
2) Residual magnetism: refers to the suction force of the suction cup when it is not working. The size of the residual magnetism mainly affects the difficulty of unloading the workpiece and the size of the workpiece's residual magnetism. Each standard stipulates that the value is no more than 10% of the suction force at that point.
3) Work surface stiffness: It is evaluated by the displacement δ of the specimen under the action of the specified static load Q, and should comply with the requirements in Table 5.
Specification of Powerful Electromagnetic Chuck For Surface Grinder:
|
|
||||||||||||
|
Model |
Dimension(mm) |
N.W |
DCV |
A |
||||||||
|
A |
B |
C |
D |
E |
F |
G |
I |
J |
||||
|
GMEEM 200X630 |
200 |
630 |
30 |
550 |
22(4+18) |
192 |
20 |
100 |
30 |
18.5 |
110 |
1 |
|
GMEEM 250X500 |
250 |
500 |
30 |
400 |
22(4+18) |
244 |
20 |
95 |
30 |
25 |
110 |
1 |
|
GMEEM 300X600 |
300 |
600 |
30 |
510 |
22(4+18) |
285 |
20 |
88 |
30 |
21 |
110 |
1.1 |
|
GMEEM 300X680 |
300 |
680 |
30 |
600 |
22(4+18) |
296 |
20 |
116 |
30 |
31 |
110 |
1.36 |
|
GMEEM 300X800 |
300 |
800 |
30 |
730 |
22(4+18) |
296 |
20 |
116 |
12 |
41 |
110 |
1.8 |
|
GMEEM 300X1000 |
300 |
1000 |
30 |
900 |
22(4+18) |
294 |
20 |
110 |
12 |
51 |
110 |
2 |
|
GMEEM 320X800 |
320 |
800 |
30 |
704 |
22(4+18) |
314 |
20 |
100 |
12 |
61 |
110 |
1.46 |
|
GMEEM 320X1000 |
320 |
1000 |
30 |
900 |
22(4+18) |
314 |
20 |
110 |
12 |
71 |
110 |
2 |
|
GMEEM 400X800 |
400 |
800 |
30 |
704 |
22(4+18) |
392 |
20 |
105 |
10 |
81 |
110 |
1.45 |
|
GMEEM 400X1000 |
400 |
1000 |
30 |
904 |
22(4+18) |
392 |
20 |
105 |
10 |
91 |
110 |
1.9 |
|
GMEEM 500X1000 |
500 |
1000 |
30 |
858 |
22(4+18) |
492 |
20 |
105 |
10 |
101 |
110 |
2 |
|
GMEEM 600X1000 |
600 |
1000 |
30 |
858 |
22(4+18) |
592 |
20 |
107 |
10 |
101 |
110 |
2.4 |
|
GMEEM 800X1000 |
800 |
1000 |
30 |
858 |
22(4+18) |
795 |
20 |
115 |
15 |
101 |
110 |
3.2 |
|
GMEEM 500X1500 |
500 |
1500 |
30 |
1372 |
22(4+18) |
492 |
20 |
112 |
15 |
101 |
110 |
5 |
Note: This table shows the common specification, optional for any special specification.

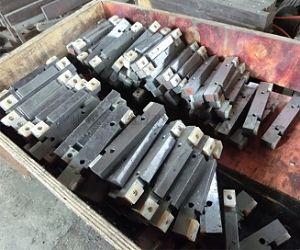

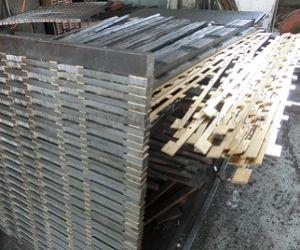

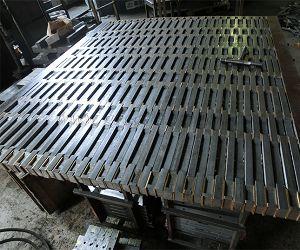

Technology of Powerful Electromagnetic Chuck For Surface Grinder：
The coil windings should be arranged neatly, evenly and tightly, the outside of the coil should be tied firmly, the coil should be vacuum dipped and dried, and insulating materials should be used to reliably seal it in the suction cup; the lead wire of the suction cup should be good Sealing, insulation and anti-breakage measures are adopted, and the lead wire connectors have good anti-falling measures.
