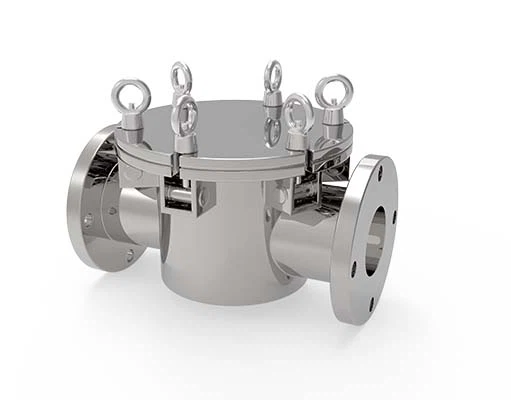

![Magnetic Liquid Traps]()
Magnetic Liquid TrapsGeneral Description Magnetic Liquid Traps, also named Magnetic Liquid Filters, are designed for removing ferrous contamination from liquid or semi-liquid materials with different viscosity, to keep -
![Dry Electromagnetic Separator]()
Dry Electromagnetic SeparatorElectromagnetic Separator for Dry Powder, DRY Electromagnetic Separators, Magnetic Separation Equipment manufacturer.Used for demagnetization and screening of new energy materials and mineral powder -
![Magnetic Sheet Separators Magnetic Sheet Fanners]()
Magnetic Sheet Separators Magnetic Sheet FannersMagnetic Sheet Separators Magnetic Sheet Fanners Magnetic Sheet Separators create a strong magnetic field to the ferrous steel sheet stack. The induced magnetic field creates like magnetic polarity -
![GME Magnetic Tube 12000 Gauss- Mirror Finish]()
GME Magnetic Tube 12000 Gauss- Mirror FinishMagnetic tubes description The magnetic bar is made of rare earth permanent, coated with stainless steel tube and are seal-welded. By using its power magnetic force, small ferromagnetic impurity -
![Grate Hopper Magnet]()
Grate Hopper MagnetGrate Hopper Magnet for Injection Molding Machine Grate magnet Separators, sometimes called magnetic grate, magnetic shelf, magnetic grill, grid magnet or hopper magnet, because it is widely used in -
![Hopper Magnet Food Industry Magnetic Filter]()
Hopper Magnet Food Industry Magnetic FilterFood Industry Magnetic Filter/Grid Hopper Magnet . High-intensity hopper magnetic separator filer used for removing iron contamination from dry free-flowing grain, flour, sugar, powders, pigments, -
![Magnetic Tube Strong Magnetic Filter Rod]()
Magnetic Tube Strong Magnetic Filter RodOur magnetic tubes are produced with waterproof welding to avoid water penetration during use. Our highest Gaussian can reach 15000GS. -
![Magnetic Coolant Separators]()
Magnetic Coolant SeparatorsMagnetic Coolant Separators are designed to extend the life of cutting tools, grinding wheels and pumps. Cleaner coolant results in reduced machine downtime and lower operating costs. -
![Bullet Magnet]()
Bullet MagnetPipeline Inline Magnetic Separation Bullet Magnet Separator Bullet Magnet or Magnetic Bullet Separator is constructed by a nose cone in the central within a SS housing outside to remove ferrous -
![Magnetic Trap]()
Magnetic TrapLiquid Line Magnetic Ferrous Tube Trap Filter Separator Magnetic Protection Against Tramp Iron Contamination Magnetic Separator or Magnetic Liquid Traps are designed and engineered to remove ferrous
What is a magnetic separator?
A magnetic separator is a magnet used to remove impurities and other magnetic materials from metal in a production line. Magnetic separators can be used before, during, and after the production of a material and can be adjusted to attract different types of magnetic materials at different intensity levels.
Although its use is almost always industrial, a magnetic separator is used for various applications. Magnetic separators can be fitted at a variety of critical control points within the production line, including silo intake, on conveyor belts, and in pneumatic lines. The raw material or finished product is fed either by gravity, air, pumped, or conveyor belt, where it passes through or over a magnetic rod, grid, grate, or plate. The magnetic field captures the ferrous contamination by attracting it to the magnetic tube or plate. The non-magnetic clean product can then continue through the process.
Our Products

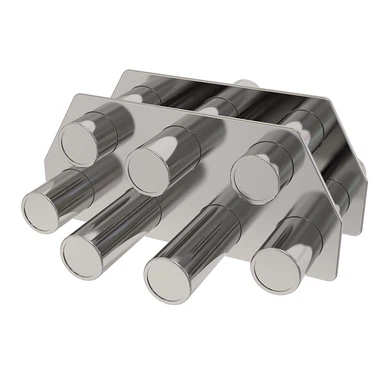

Grate Magnet

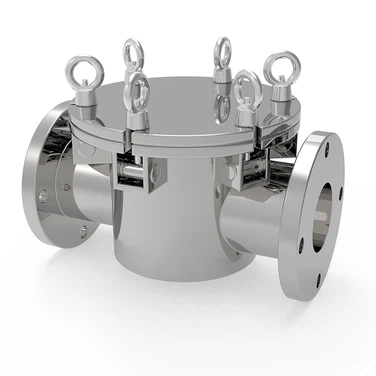

Magnetic Liquid Trap
Drawer Magnet
Plate Magnet
Magnetic Head Pulley
Bullet Magnet
Specifications of Different Types of Magnetic Separators
Neodymium Magnetic Filter Rod
|
|
|||
| Diameter(mm) | Gauss | Length(mm) | Thread |
| D25 | 8000-14000GS | 100 | M8 |
| 150 | |||
| 200 | |||
| 250 | |||
| 300 | |||
| 350 | |||
| 400 | |||
| 450 | |||
| 500 | |||
| 550 | |||
| 600 | |||
| 700 | |||
| 800 | |||
| 1000 | |||
Easy-Clean Magnetic Grid
|
|
||||
| Item | Dia | H | Bars | Weight(kg) |
| MG-R100 | 100 | 40 | 2 | 0.9 |
| MG-R150 | 150 | 40 | 3 | 1.5 |
| MG-R200 | 200 | 40 | 4 | 2.5 |
| MG-R250 | 250 | 40 | 5 | 3.7 |
| MG-R300 | 300 | 40 | 6 | 5.5 |
| MG-R350 | 350 | 40 | 7 | 7.5 |
| MG-R400 | 400 | 40 | 8 | 10 |
| MG-R450 | 450 | 40 | 9 | 12.3 |
| MG-R500 | 500 | 40 | 10 | 15.5 |
Angle Type Magnetic Liquid Traps
|
|
|||||||
| Item No. | A | φB | C | φD | E | F | L |
| GM-E10 | 2S | 47.8 | 1S | 23 | 60 | 226 | 350 |
| GM-E10-1 | 2S | 47.8 | 1S | 23 | 55 | 226 | 340 |
| GM-E15 | 2S | 47.8 | 1.5S | 35.7 | 70 | 226 | 350 |
| GM-E20 | 2.5S | 59.5 | 2S | 47.8 | 82 | 226 | 450 |
Magnetic Liquid Traps
|
|
||||||
| EM NO | Dimension(mm) | Weight(Kg) | ||||
| A | B | C | D | E | ||
| SWFHM120 | 120 | 150 | 470 | 170 | 200 | 15 |
| SWFHM150 | 150 | 178 | 750 | 250 | 220 | 37 |
| SWFHM200 | 200 | 178 | 750 | 300 | 220 | 49 |
| SWFHM250 | 250 | 178 | 750 | 350 | 220 | 61 |
| SWFHM300 | 300 | 178 | 750 | 400 | 220 | 73 |
| SWFHM350 | 350 | 200 | 1110 | 450 | 300 | 141 |
| SWFHM400 | 400 | 200 | 1110 | 500 | 300 | 161 |
| SWFHM450 | 450 | 200 | 1110 | 550 | 300 | 181 |
| SWFHM500 | 500 | 200 | 1110 | 600 | 300 | 201 |
Hump Magnetic Separator
|
|
|||||||
| Item | Dimension (mm) | Bar QTY | Weight (Kg) | ||||
| ΦA | B | C | H | KW | |||
| RMS150 | 150 | 205 | 208 | 450 | 0.25 | 7 | 43 |
| RMS200 | 200 | 255 | 258 | 500 | 0.25 | 9 | 54 |
| RMS250 | 250 | 305 | 308 | 550 | 0.25 | 11 | 62 |
| RMS300 | 300 | 355 | 358 | 600 | 0.37 | 13 | 72 |
| RMS350 | 350 | 405 | 408 | 650 | 0.37 | 15 | 84 |
| RMS2020 | - | 205 | 208 | 270 | 0.25 | 7 | 29 |
| RMS2525 | - | 255 | 258 | 320 | 0.25 | 9 | 38 |
| RMS3030 | - | 305 | 308 | 370 | 0.25 | 11 | 43 |
| RMS3535 | - | 355 | 358 | 420 | 0.37 | 13 | 52 |
| RMS4040 | - | 405 | 408 | 450 | 0.37 | 15 | 62.5 |
Drum Head Roller Separator
|
|
||||
| Model No. | Dia A | B | Φ | Weight (Kg) |
| HMD2130 | 215 | 300 | 25 | 29 |
| HMD2135 | 215 | 350 | 25 | 34 |
| HMD2140 | 215 | 400 | 25 | 39 |
| HMD2145 | 215 | 450 | 25 | 44 |
| HMD2150 | 215 | 500 | 25 | 49 |
| HMD2160 | 215 | 600 | 25 | 59 |
| HMD2170 | 215 | 700 | 25 | 69 |
| HMD2180 | 215 | 800 | 25 | 79 |
| HMD2190 | 215 | 900 | 25 | 89 |
| HMD3170 | 315 | 700 | 25 | 142 |
| HMD3180 | 315 | 800 | 25 | 162 |
| HMD3190 | 315 | 900 | 25 | 182 |
| HMD3110 | 315 | 1000 | 28 | 202 |
| HMD3111 | 315 | 1100 | 28 | 222 |
| HMD4030 | 400 | 300 | 28 | 100 |
| HMD4035 | 400 | 350 | 28 | 116 |
| HMD4040 | 400 | 400 | 28 | 132 |
| HMD4045 | 400 | 450 | 28 | 148 |
Double-Layered Drawer Magnets
|
|
|||||
| Model NO | B | D | T | Magnets Action | Weight |
| MM | MM | MM | Range | KG | |
| EP60 | 250 | 175 | 51 | 60 | 5.7 |
| EP120 | 300 | 225 | 76 | 120 | 10.4 |
| EP150 | 450 | 360 | 111 | 150 | 19.1 |
| EP60 | 190 | 125 | 36 | 60 | 3.7 |
| EP120 | 250 | 175 | 46 | 120 | 5.9 |
| EP150 | 330 | 240 | 56 | 150 | 10.3 |
Flush Face Plate Magnet
|
|
|||||
| MODEL NO | B | D | T | Magnets Action Range Dimension | Weight |
| MM | MM | MM | Range | KG | |
| SM60 | 250 | 175 | 51 | 60 | 5.8 |
| SM120 | 300 | 225 | 76 | 120 | 10.5 |
| SM150 | 450 | 360 | 111 | 150 | 19.2 |
| SM60 | 190 | 125 | 36 | 60 | 3.8 |
| SM120 | 250 | 175 | 46 | 120 | 6 |
| SM150 | 330 | 240 | 56 | 150 | 10.4 |
Magnetic Sheet Fanners
|
|
||||
| Part Number | A (") | B (") | C (") | D (") |
| Series 1 -- For Light Gage Steel | ||||
| MSS1-1427 | 7.25 | 5.25 | 1.75 | 5 |
| MSS1-1428 | 10.25 | 5.25 | 1.75 | 5 |
| MSS1-1429 | 13.25 | 5.25 | 1.75 | 5 |
| MSS1-1430 | 16.25 | 5.25 | 1.75 | 5 |
| Series 2 -- For Medium Gage Steel | ||||
| MSS2-1431 | 10.25 | 6.25 | 2.75 | 8 |
| MSS2-1432 | 13.25 | 6.25 | 2.75 | 8 |
| MSS2-1433 | 16.25 | 6.25 | 2.75 | 8 |
| MSS2-1434 | 19.25 | 6.25 | 2.75 | 8 |
| Series 3 -- For Heavy Gage Steel | ||||
| MSS3-1435 | 10.25 | 6.25 | 3.75 | 10 |
| MSS3-1436 | 13.25 | 6.25 | 3.75 | 10 |
| MSS3-1437 | 16.25 | 6.25 | 3.75 | 10 |
Electromagnetic Separator-Dry Material
|
|
||||||||||
| Model | Work Pressure | Surface Magnetism (Gs) |
H (mm) |
Pipe Diameter (mm) |
A (mm) |
B (mm) |
C (mm) |
Number of Magnetic Rods | Energy Consumption (KW) |
Processing Capacity (m³/h) |
| YCJL-273-FA-7 | ≤1.0MPa | 12000 | 2292 | 89 | 770 | 950 | 273 | 7 | 0.55 | 20m³/h |
| YCJL-325-FA-7 | 15000 | 2292 | 125 | 770 | 950 | 325 | 7 | 0.55 | 40m³/h | |
Wet Automatic Cleaning Magnetic Separator
|
|
||||||||||
| Model | Work Pressure | Surface Magnetism (Gs) |
H (mm) |
Pipe Diameter (mm) |
B (mm) |
C (mm) |
D (mm) |
Number of Magnetic Rods | Number of Cylinders | Processing Capacity (m³/h) |
| YCJL-273-SA-G4 | ≤1.0MPa | 12000 | 1339 | 89 | 2123 | 540 | 2175 | 24 | 4 | 20m³/h |
| YCJL-325-SA-G4 | 15000 | 1339 | 125 | 2450 | 640 | 2175 | 20 | 4 | 40m³/h | |
To learn more about the specifications of the Magnetic Separator or if you require watermark-free technical drawings, please click the button below to contact our sales team.
Why Choose Us
With over 15 years of industry experience, Great MagTech is your trusted partner for magnetic separation solutions. Our expertise is backed by a team of multilingual sales professionals fluent in French, Thai, and Vietnamese, ensuring seamless communication and understanding of your requirements. Our products include a series of magnetic products used in various industries, including magnetic rods, drawer magnets, and magnetic liquid traps, etc., and we can also meet your customized services.
Choose Great MagTech for your magnetic separation needs and experience the difference our extensive experience, multilingual support, vertical integration, quality assurance, and dedicated service can make to your business.
01
In-House Manufacturing
With our magnetic separator factory, we oversee the entire production process, ensuring strict adherence to quality standards and precise specifications.
02
Quality Assurance
We guarantee the quality of our magnetic separators and offer a full refund in the unlikely event of any quality issues, showcasing our unwavering commitment to customer satisfaction.
03
Logistics Assistance
Our dedicated logistics team provides thorough tracking and monitoring of shipments, offering real-time updates on delivery status to ensure timely and reliable delivery of your orders.
04
Custom Service
From product selection to post-sales support, our team offers personalized assistance, ensuring a smooth and hassle-free experience for every customer.
Product Testing Packaging
Production
All products are made of high-quality materials and are strictly controlled
Product Testing
We will send you the inspection pictures and videos before shipment.
Packaging and Shipping
Safe non-magnetic packaging, full follow-up during the transportation process
Our Certificate
FAQs
Q: What information should I provide before requesting a quote?
A: It helps to share: Material type and particle size, Processing capacity (tons per hour), Installation location, Required magnetic strength, Working temperature. Clear details allow for a more accurate recommendation.
Q: Can magnetic separators remove non-ferrous metals?
A: Standard magnetic separators mainly remove ferrous metals such as iron and steel. Non-ferrous metals like aluminum or copper require different separation technologies, such as eddy current systems.
Q: Are magnetic separators suitable for food applications?
A: Yes, many separators are designed to meet food-grade standards. For food processing, you should confirm material certifications and surface finishing requirements.
Q: Can magnetic separators handle high temperatures?
A: Some models are designed for high-temperature environments, but standard versions have operating limits. If your process involves elevated temperatures, you should confirm the working range before selecting a unit.
Q: What is the difference between a magnetic grate and a magnetic drum?
A: Magnetic grates are usually installed inside hoppers or chutes to capture metal particles as materials pass through. Magnetic drums are often used in conveyor systems for continuous separation of larger volumes. The choice depends on your processing method.
Q: How do I choose the right type of magnetic separator?
A: Start by checking your material type, particle size, and flow condition. Is the material dry or wet? Powder or bulk solid? You also need to consider installation space and the required magnetic strength. Sharing these details helps determine the most suitable model.
Q: What are magnetic separators used for?
A: Magnetic separators are used to remove ferrous metal contaminants from materials. You can use them in industries such as food processing, recycling, mining, plastics, chemicals, and grain handling. They help protect equipment and improve product purity.
Q: Can magnetic separators be customized for specific production lines?
A: Yes. Magnetic separators can be adjusted to fit your installation space and processing needs. You may customize dimensions, magnetic strength, inlet and outlet sizes, or mounting structure. Providing drawings or layout details helps ensure proper integration.
Q: What materials are used in magnetic separators?
A: Many units use stainless steel housings for durability and hygiene. Inside, high-performance rare-earth magnets are commonly used to generate strong magnetic fields. The material choice depends on your industry and working environment.
