Plastic Coated Magnets

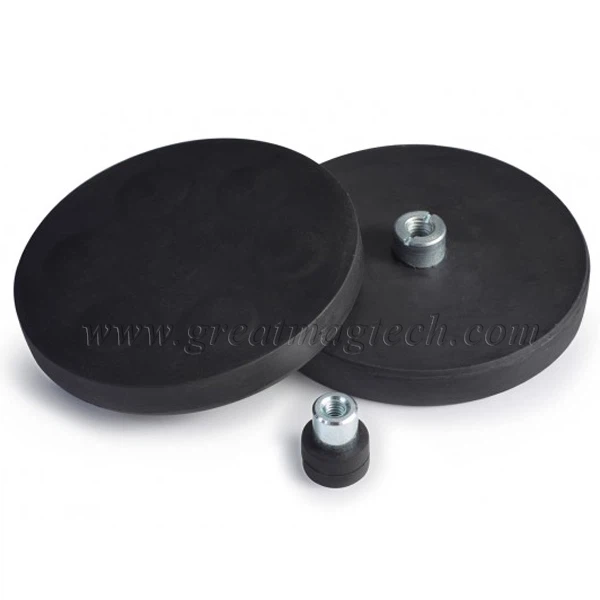

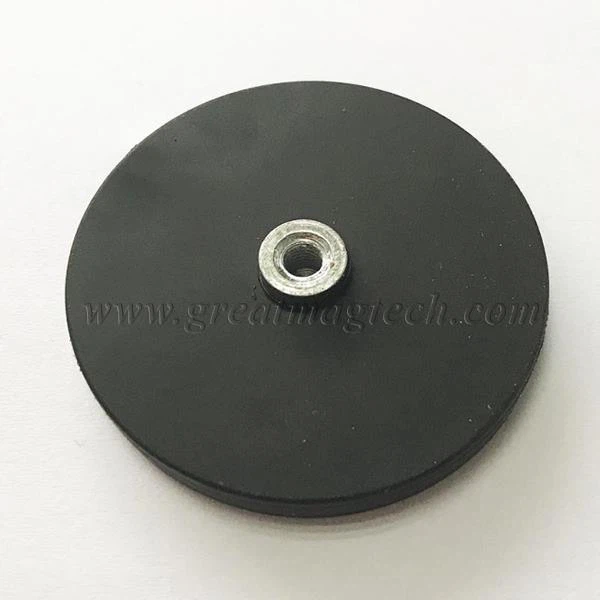

Plastic Coated Magnets Plastic Coated Magnets with internal thread stud Description

These round rubber coated pot magnet with internal thread, strong neodymium magnet is embedded in a steel Pot. The steel pot increases the adhesive force of the magnet on direct contact with a thick iron surface. If there is no direct contact with the counterpart, or if the steel plate is thin, painted or rough, pot magnet will be much less strained.

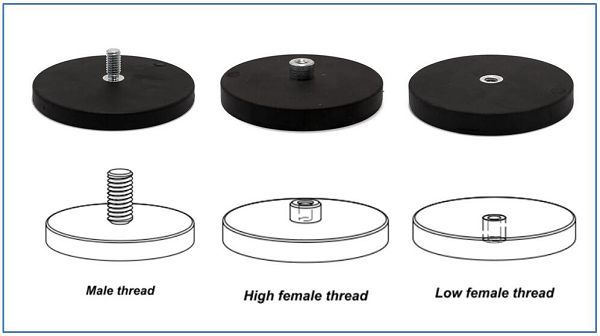

The rubber coated neodymium pot magnets generally have three type, such as external thread rubber coated magnet, round rubber coated pot magnet with internal thread, and rubber coated magnet with low female thread.
Rubber coated neodymium pot magnets are used especially on delicate surfaces. Due to the rubber coating occurs neither scratches nor discoloration. Moreover the slip resistance is improved thanks to rubber coating. Most of them used as gun magnet mount and magnetic camera mount.

Plastic Coated Magnets with internal thread stud Specification
For this round rubber coated pot magnet with internal thread, it has the regular size: D22, D43, D66, D88. Of course other size is accept customized.
You can choose them according to the size of the diameter and the vertical pull force of these magnetic rubber base.

Model	D	M	D1	h	H	Net Weight	Attraction
						(g)	(Kg)
D22	22	4	8	6	11.5	12	5
D43	43	4	8	6	12	33	8
D66	66	5	10	8	14.2	104	20
D88	88	8	12	8.5	15.8	200	42

Plastic Coated Magnets with internal thread stud Packing

Plastic Coated Magnets with internal thread stud Structure

Plastic Coated Magnets with internal thread stud Application
These rubber coated neodymium pot magnets with strong pull force, it is highly suitable for both indoor and outdoor applications.
Round rubber coated pot magnet with internal thread are mainly used within the industrial area and primarily for the oil, wind and gas industry. Other applications such as for advertising, fixture on vehicles etc. are also common.
You can used it in advertising Exhibition Display Signs, mounting magnet, Holders, Magnetic Bases, mechanical processing, window dressing , door / cupboard and gate clamps, false ceiling clamps, signs and banners, torque limited seals, jigs and fixtures, lighting holders, marketing and exhibition displays, retrieval magnets, industrial fixings, office, family life and other fields.
