Magnetic Tube Product Description
Rare Earth Magnetic Tubes utilize the industry's strongest magnet circuit available to recover more fine-iron contamination and reduce product wash-off. They can be used as inspection tools or in areas where conventional Grate Magnets will not fit.

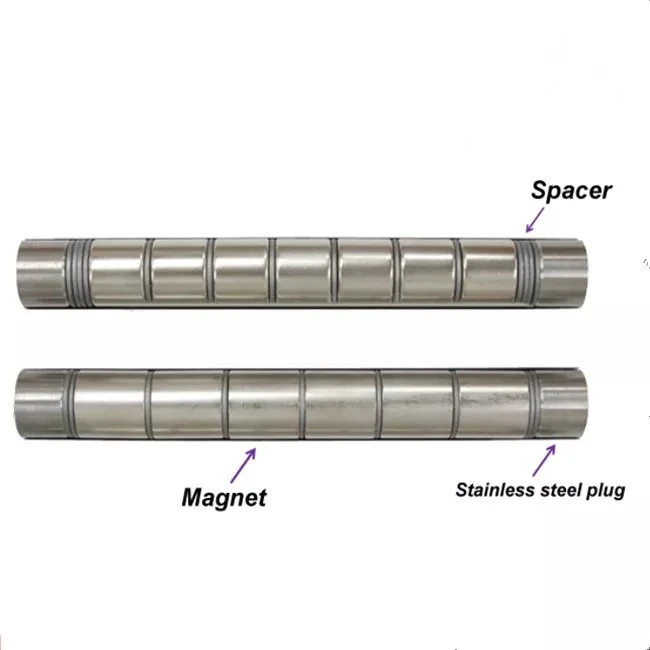

Encased in 316 stainless steel tubes 25.4mm in diameter, they are manufactured with high-intensity rare earth magnets (up to 15,000 gausses). We manufacture them specifically to the length requested by the customer. The sealed stainless steel ends can be left blank or drilled and tapped for fixing purposes.
Magnetic Tube Features
All 316 stainless steel encased
Manufactured to virtually any length
Available with powerful rare earth magnets
Tapped ends to your requirements
Simple to install
Easy to clean
Can be supplied and assembled in the form of a Magnetic Grid
Available in various finishes: mill finish, dull polish, mirror finish
Heat resistant to 80 degrees C
Higher temperature-resistant versions are available
| |||||
| Diameter(mm) | Gauss | Length(mm) | Thread | Price($) | |
| D25 | 8000-14000GS | 100 | M8 | 9.16-15.40 | Send Inquiry |
| 150 | 16.03-28.44 | Send Inquiry | |||
| 200 | 22.82-41.39 | Send Inquiry | |||
| 250 | 29.69-54.42 | Send Inquiry | |||
| 300 | 36.49-67.38 | Send Inquiry | |||
| 350 | 43.36-80.41 | Send Inquiry | |||
| 400 | 47.17-87.34 | Send Inquiry | |||
| 450 | 54.04-100.37 | Send Inquiry | |||
| 500 | 60.83-113.32 | Send Inquiry | |||
| 550 | 67.70-126.36 | Send Inquiry | |||
| 600 | 74.49-139.31 | Send Inquiry | |||
| 700 | 74.49-139.31 | Send Inquiry | |||
| 800 | 88.15-165.30 | Send Inquiry | |||
| 1000 | 98.84-185.26 | Send Inquiry | |||
Prices are affected by changes in raw materials. If you have any questions or price favorable, please click here feel free to consult

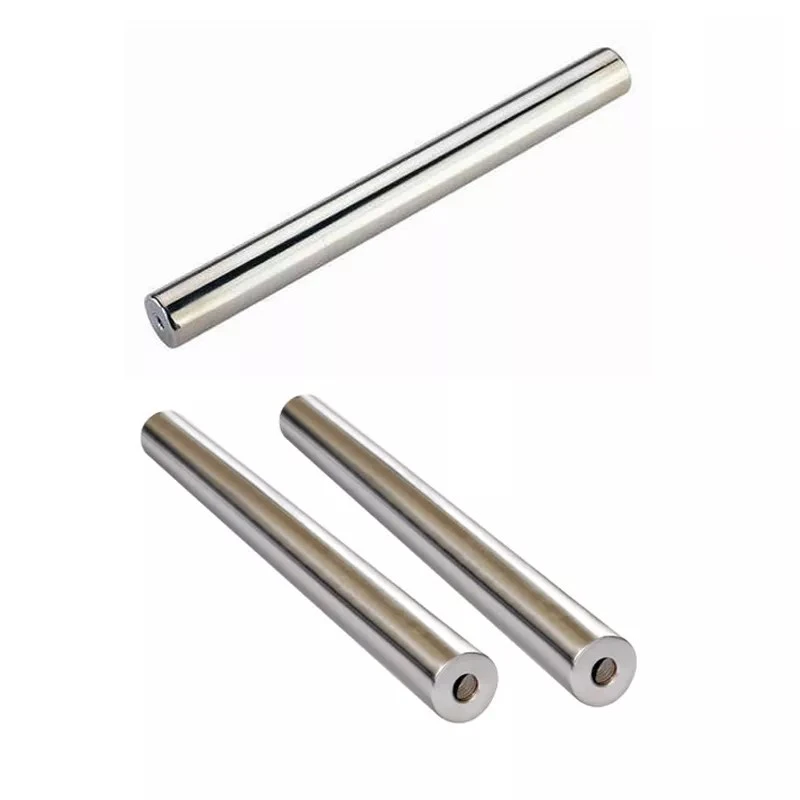

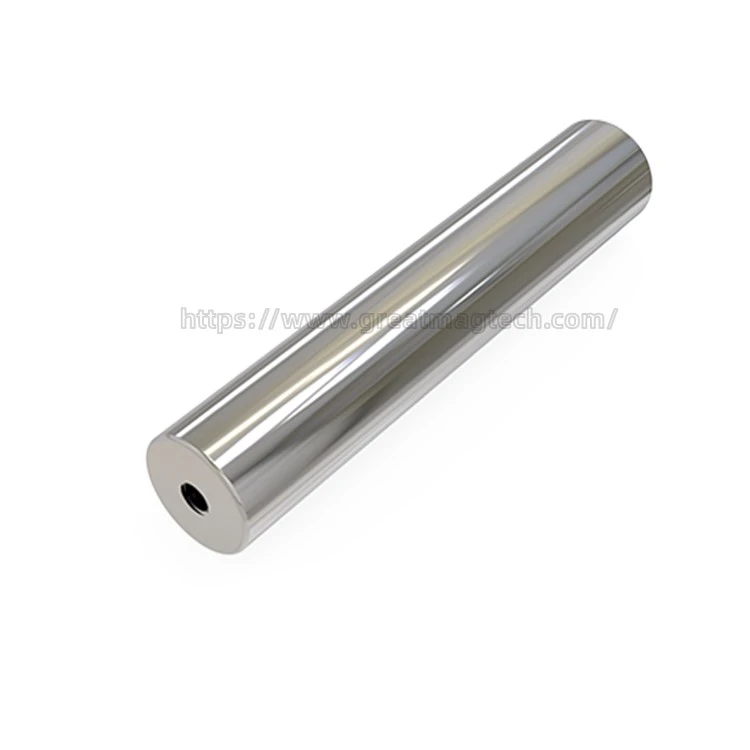

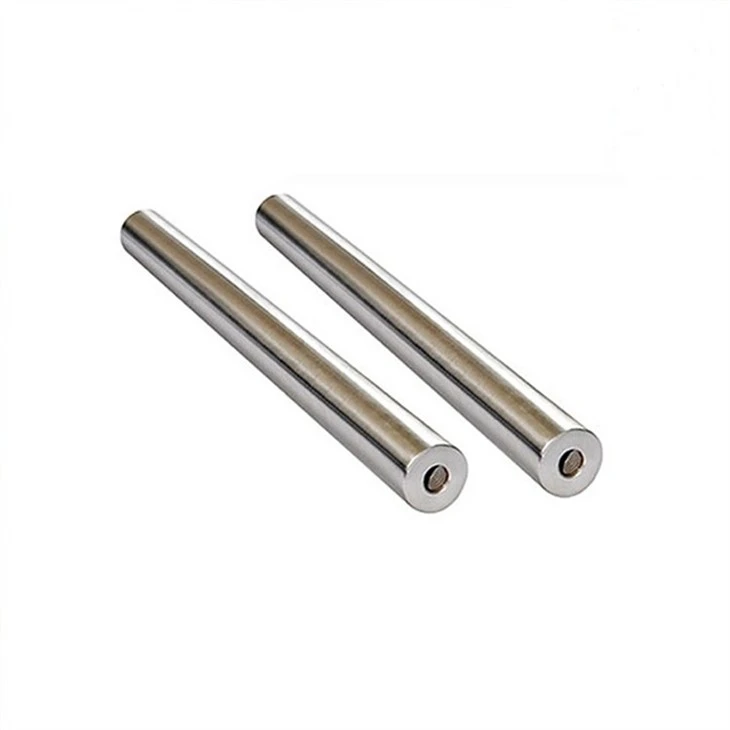

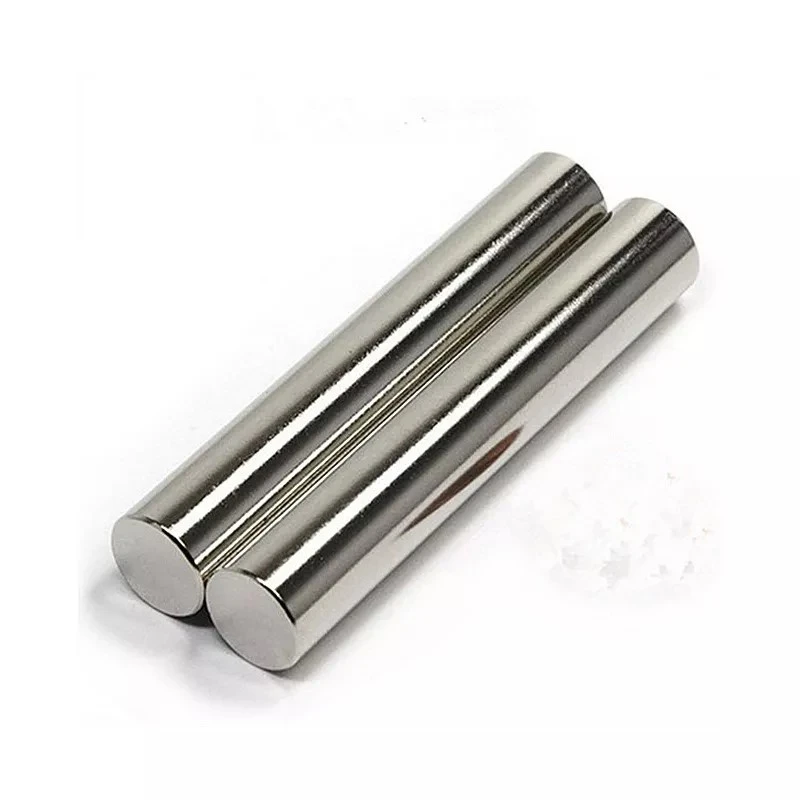

Magnetic Tube Show
Our Advantage
Built to Last
All magnet tube ends are fully welded for the highest durability and sanitary design, with no crimped or mechanically sealed end plugs
Peak Magnet Performance
Heavy wall thickness tubes for high durability, higher performance thin magnetic tubes.
Versatile Design and Budget
Multiple designs to fit every budget and performance requirement
Quick Delivery
Industry-leading lead time for delivery — as short as 24 hours for custom sizes and configurations
Magnetic Tube Applications
cocoa & chocolate, dairy & milk powder, grain, seeds, soya, rice & corn, sauces, pastes & meat, spices, herbs, coffee, tea & nuts, starch & flour, sugar, sweets & confectionary.

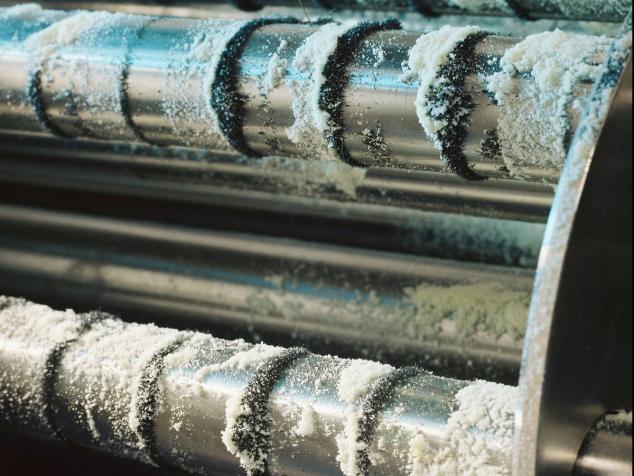

In the powder line, tube magnets capture the unwanted iron particles most effectively from the product flow. These magnets are also very suitable for the cake dump after the cocoa has been pressed and when the large pieces of the cake come out of the press.
Why Choose GME
1. We have stock magnets and stainless steel raw materials, and the fastest production and delivery only takes 7 days.
2. It can be used in direct contact with food and is harmless, and the quality has been certified.
3. Our magnetic rods are produced with waterproof welding to avoid water penetration during use. Our highest Gaussian can reach 15000GS.
4. We have invested in a new factory for raw materials, and the price cost can be reduced by 20%.
