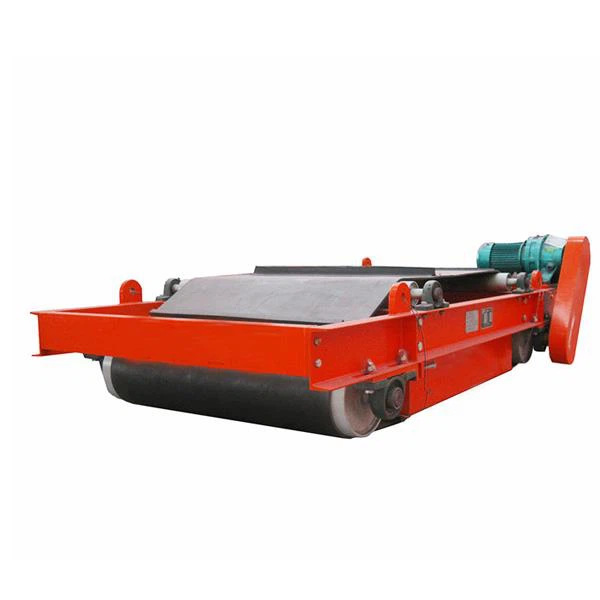

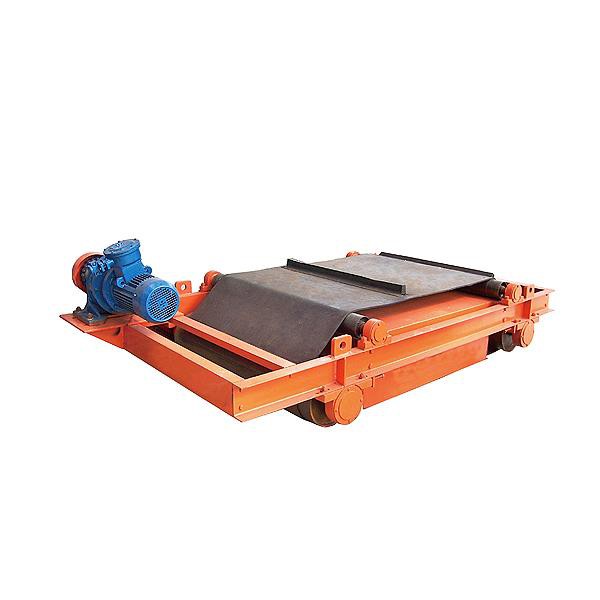

RCYD Magnetic Separator
RCYD type permanent magnetic iron remover is designed by high-energy permanent magnetic cores, discharge-iron conveyor belt, more and reducer, frame, roller components, used with all sorts of conveyor.
The continuous absorption and discharge iron.Belt with automatic correction function,low noise, reliable operation, simple maintenance. Its internal magnetic circuit by simulative design, perfect double poles structure, ensure the machine in the harsh environment trouble free long-term operation. With explosion-proof type and armored type.
Specification of RCYD Magnetic Separator:
| Model | Belt Width mm |
Suspension Height mm |
Magnetic field intensity ≥mT |
Material depth ≤mm |
Driving power Kw |
Belt spee ≤m/s |
Work hour |
Weight Kg |
Appearance size (mm) | ||||
| RCYD(C)-5 | 500 | 150 | 70 | 80 | 1.5 | 4.5 | Continuous | 750 | 1900 | 935 | 735 | 753 | 950 |
| RCYD(C)-6 | 600 | 175 | 70 | 120 | 1.5 | 920 | 2050 | 1030 | 780 | 840 | 1100 | ||
| RCYD(C)-6.5 | 650 | 200 | 70 | 150 | 1.5 | 1200 | 2050 | 1080 | 780 | 888 | 1200 | ||
| RCYD(C)-8 | 800 | 250 | 70 | 200 | 2.2 | 1400 | 2250 | 1280 | 796 | 1088 | 1300 | ||
| RCYD(C)-10 | 1000 | 300 | 70 | 250 | 3 | 2120 | 2650 | 1550 | 920 | 1335 | 1400 | ||
| RCYD(C)-12 | 1200 | 350 | 70 | 300 | 4 | 3350 | 2860 | 1720 | 1010 | 1515 | 1550 | ||
| RCYD(C)-14 | 1400 | 400 | 70 | 350 | 4 | 4450 | 3225 | 1980 | 1050 | 1755 | 1800 | ||
| RCYD(C)-16 | 1600 | 450 | 70 | 400 | 5.5 | 6200 | 3350 | 2160 | 1180 | 1850 | 1950 | ||
| RCYD(C)-18 | 1800 | 500 | 70 | 450 | 5.5 | 8100 | 3580 | 2450 | 1210 | 2130 | 2200 | ||
| RCYD(C)-20 | 2000 | 550 | 70 | 500 | 7.5 | 9700 | 3800 | 2700 | 1300 | 2410 | 2400 | ||
Product Features of RCYD Magnetic Separator:
* Magnetic circuit design using computer simulation, perfect double pole structure.
* NdFeB material is magnetic source, high coercivity, high magnetic field strength.
* Automatic clean iron, easy maintenance, wide application.
* Transmission drum with drum-type structure, the belt automatic correction function.
* Dustproof housings, low mechanical failure.
