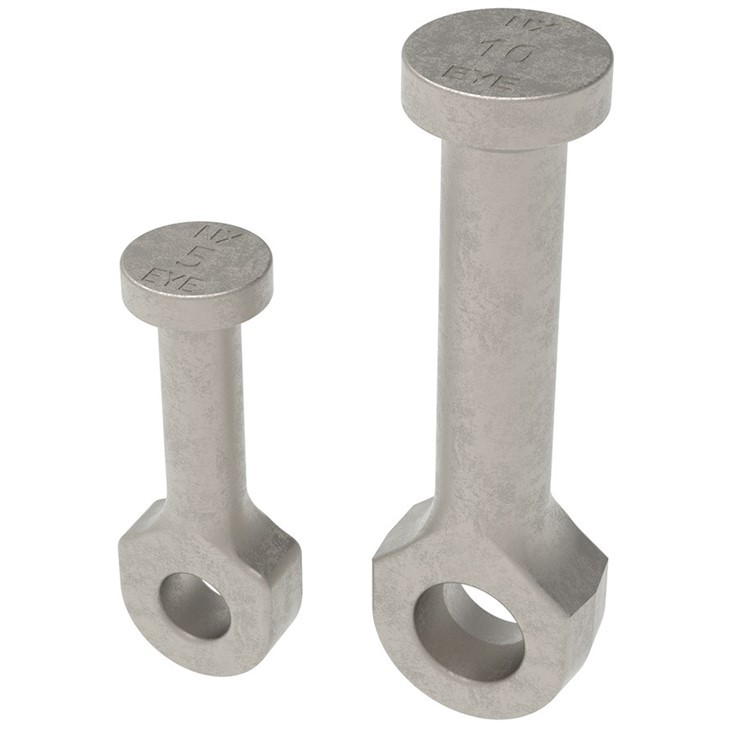

Lifting Anchor Description:
The lifting anchor is hot forged from manganese steel. The front head provides a spherical base that engages the lifting eye, while the disc foot is embedded in the concrete. Because it is a forged part, the Swift Lift Foot Anchor does not rely on welding or threaded joints to create a safe working load. Forged offers maximum security with its favorable material structure. The quick-lift anchor also has a unique design that makes it more flexible in the way it is installed. This helps make the anchor compatible with different types of concrete (from light to normal weight). These anchors are suitable for new installations and retrofit applications. Combined with the anchor's high strength and safety rating, this makes it ideal for any lifting application.
Overall, the Quick Lift Foot Anchors are an excellent choice for any lifting or rigging application. It's high-strength material and unique design makes it safe and easy to install in various environments. With its OSHA-compliant safety rating and great performance, it's ideal for any job.
To ensure maximum safety and performance, it is important to follow all installation instructions carefully. Always check with your local building department before beginning installation to make sure the anchors meet local code requirements. Also, always use properly rated hardware when installing foot anchors so you can be confident in their performance in any application.
 |  |  |
| Lifting anchors | Lifting eye anchors | Double head lifting anchors |
Lifting Anchor Specification:
| ||||||||
| Code | Load group (T) | L(mm) | D(mm) | D1(mm) | D2(mm) | S(mm) | R(mm) | Ar(mm) |
| GMELA1.3-120 | 1.3 | 120 | 10 | 19 | 25 | 10 | 30 | 390 |
| GMELA1.3-240 | 1.3 | 120 | 10 | 19 | 25 | 10 | 30 | 390 |
| GMELA2-140 | 2 | 140 | 14 | 26 | 35 | 11 | 37 | 450 |
| GMELA2-190 | 2 | 190 | 14 | 26 | 35 | 11 | 37 | 450 |
| GMELA2.5-170 | 2.5 | 1170 | 14 | 26 | 35 | 11 | 37 | 540 |
| GMELA2.5-280 | 2.5 | 280 | 14 | 26 | 35 | 11 | 37 | 540 |
| GMELA4-210 | 4 | 210 | 18 | 35 | 45 | 15 | 47 | 675 |
| GMELA4-240 | 4 | 240 | 19 | 36 | 45 | 16 | 47 | 675 |
| GMELA4-340 | 4 | 340 | 18 | 36 | 45 | 15 | 47 | 675 |
| GMELA4-420 | 4 | 420 | 18 | 36 | 45 | 15 | 47 | 675 |
| GMELA5-240 | 5 | 240 | 20 | 36 | 45 | 15 | 47 | 765 |
| GMELA5-340 | 5 | 340 | 20 | 36 | 45 | 15 | 47 | 765 |
| GMELA5-480 | 5 | 480 | 20 | 36 | 45 | 15 | 47 | 765 |
| GMELA7.5-300 | 7.5 | 300 | 24 | 46 | 60 | 15 | 59 | 945 |
| GMELA7.5-540 | 7.5 | 540 | 24 | 46 | 60 | 15 | 59 | 945 |
| GMELA7.5-680 | 7.5 | 680 | 24 | 46 | 60 | 15 | 59 | 945 |
| GMELA10-340 | 10 | 340 | 28 | 46 | 70 | 15 | 59 | 1100 |
| GMELA10-680 | 10 | 680 | 28 | 46 | 70 | 15 | 59 | 1100 |
| GMELA15-400 | 15 | 400 | 34 | 69 | 98 | 15 | 80 | 1250 |
| GMELA20-500 | 20 | 500 | 38 | 69 | 98 | 15 | 80 | 1550 |
| GMELA20-1000 | 20 | 1000 | 38 | 69 | 98 | 15 | 80 | 1550 |
| GMELA32-700 | 32 | 700 | 50 | 88 | 135 | 23 | 107 | 2150 |
| GMELA15-1200 | 32 | 1200 | 50 | 88 | 135 | 23 | 107 | 2150 |
Cooperation Case:
| Project | Product | Time | Picture |
| CPanel Public Company Limited | 2.5T lifting anchors(14000KG) | 2019.02-present |
|
| CORE TECH INTERNATIONAL CORP | 5T lifting anchors(7000KG) | 2023-1-31 |
|
| SteinBauer LLC | lifting anchors(2 containers) | 2022-01-05 |
|
Factory of Lifting Anchor:
scientific control statistical method
Test Report
Why Choose us?
As an reliable supplier from China, we have served numerous clients all over the world. We have been working with our customers for fifteen years. We have a comprehensive set of services, sales, and after-sales service.
