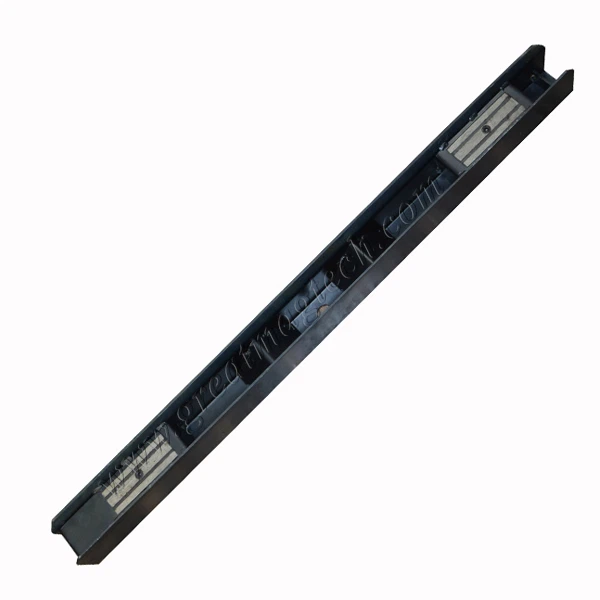

Precast Concrete Magnetic Formwork Side Mold

Description of Precast Concrete Magnetic Formwork

This formwork-system, consist of a formwork-profile (steel) with integrated magnetic tension-mechanism, which can be used in different formworks. It is especially suitable for the production of flagrant- respectively double walls and lattice girder ceilings.

By mean of the tension-mechanism, the profile (layer is planed) is pulled to the bottom of the shuttering, so that an exactly edge of the manufactured item is managed. For the system is one unit, measuring mistakes are not possible. The easy and quick handling increases the work safety. Using the corresponding lever, the system can be taken off and removed easily from the bottom of the shuttering.

By mean of the separated arrangement of tension mechanism and handle-knob, and tension mechanism and shuttering, the forces acting on the formwork and on the magnet during the concrete process are absorbed.

The built-in tension elements are placed in a save position, so that the formwork-system is less sensitive against soiling.

Note: Recess profiles before first using into oil!

To make possible a stacking up, and to prevent that the formwork sticks to each other, the knob is made out of antimagnetic material. The system can also be delivered storeroom- and robot capable.

With defect the old shuttering, by remove from 3 screws, can be easily exchanged.

Declining shapes and dimensions on demand.

Advantage of Precast Concrete Magnetic Formwork:

GME Formwork System assembled by a powerful magnets inserted and a U steel out profile. Fast, Secure, Efficient.

Universal system for precast concrete production;

Easy positioning, fasting and releasing;

Suitable for all current formwork robots or manual handling;

Variety heights is available( able to custom made);

Magnets do not have to be placed individually, it is time saving;

Varity length is available according to your requirements;

Many Chamfer option is available for our profile.

Surface Treatment:

Black Oxidation Treatment, Black Painting and others as per requirements.

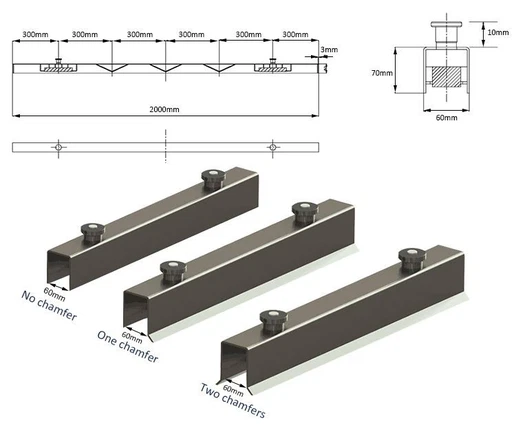

Specifications of Precast Concrete Magnetic Formwork:

Material: Neodymium Magnets, 3 mm thickness steel profile

Pull force: 900 KG; Customizable.

Size: Standard width: 60 mm

Standard height: 60,65,70,75 or 80 mm

Steel plate: 3 mm

Chamfer option is available for our profile. There are 3 options for the edges:

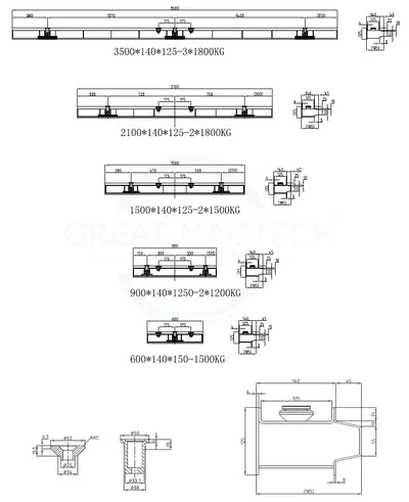

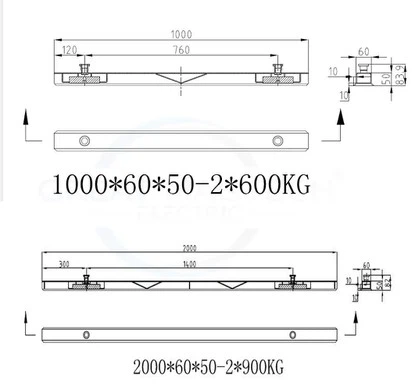

Customer Drawing

Project	Product	Time	Drawing
LTP ENGINEERING SDN BHD (716782-A)	Formwork magnet （3.5m, 2.1m, 1.5m, 0.9, 0.6）	2023-04-10
Wytwórnia Materiałów Budowlanych Tele-Strop-System G.Radzikowski	Formwork magnet （1m, 2m, ）	2023-05-09

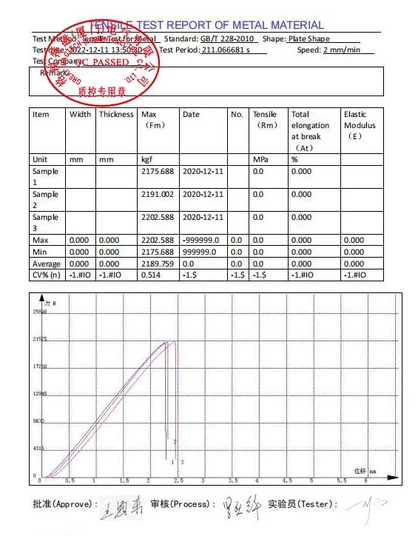

Test Report

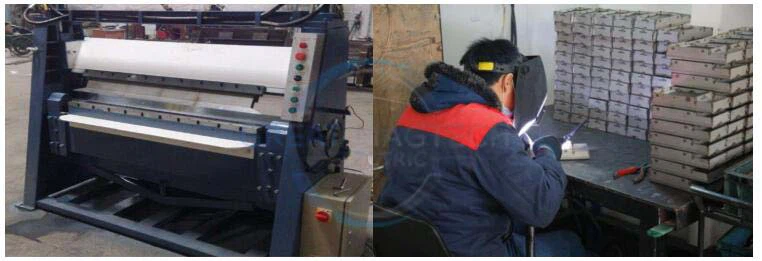

Formwork Production Technique

Folding (used to produce formwork magnet of 1-2m)

It is integrally formed by a folding machine, with double groove chamfering, single groove chamfering and no chamfering.

Welding (used to produce formwork magnet of 2-3m)

Hand soldering equipment, suitable for the production of formwork magnet with heights over 100mm.

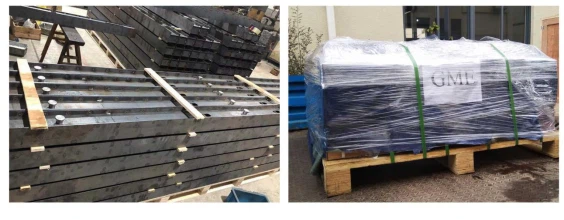

Packaging

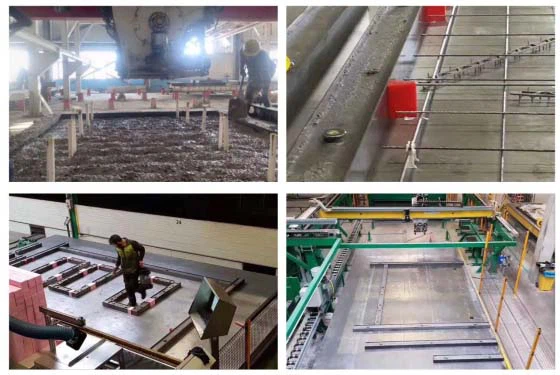

Formwork Magnet Application

Our Advantage

We have introduced international advanced fiber laser cutting machine, electro-hydraulic servo CNC bending machine and several CNC lathes and welding beds. We can independently develop and produce magnetic edge molds of various sizes and suctions. The 4-meter long formwork can be bended at one time. High precision and excellent quality.
