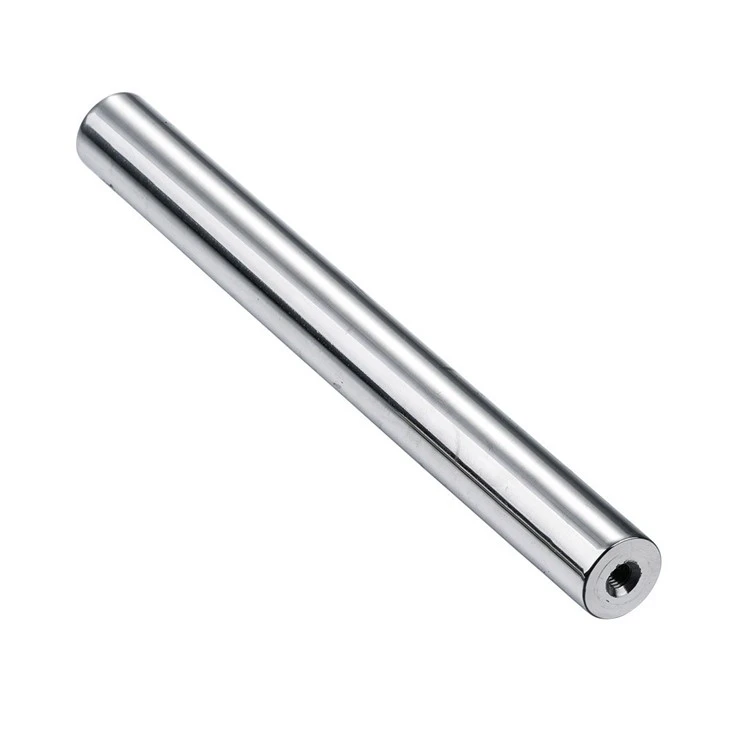

Magnetic Rod Rare Earth Magnetic Bar Filter Stick 14000gauss Tube Magnets

Magnetic Rod Rare Earth Magnetic Bar Filter Stick 14000gauss Tube Magnets

Magnetic rods, Magnetic rod filters offer greater protection in their facilities, they are composed of a permanent magnet made of stainless steel, and the cleaning must be manual.

Magnetic Rod Separator provides an effective means of removing ferrous chips and metal particles from loosely packed, free-flowing materials. They are usually constructed of 304 stainless steel tubes or 316 stainless steel tubes for special domains filled with Ceramic or Rare Earth Magnet. Either round or square shape bars are available for customers desiring special applications.

Features：

1. Standard round bar has a length of 25 mm(1 inch) diameter. As required, it can reach a maximum length of 2500mm. Magnetic tubes or other different shapes and dimensions are also

available.

2. 304 or 316L stainless steel are available for pipeline material which can be fine polished and meet the standard of the food or pharmacy industry.

3. Standard working temperature≤80℃, and maximum working temperature can reach 350℃ as

required.

4. Various kinds of ends like nail head, thread hole, double screw bolt are also available.

5. Different kinds of magnets like Ferrum magnet or other rare earth magnets are available to meet every customer’s requirement. The maximum magnetic strength of 25mm (1 inch) diameter can reach 14,000GS.

Flow chart of magnetic rod:

Application of magnetic rod filters:

Magnetic rods, magnetic rod filters may apply in medicines, sanitation, textile, machinery, and foodstuffs. The filer will attract iron/steel substances away from liquids, from among grains or powders.
