Filter Bag Magnet Magnetic Grid

Bag Filter Magnet Description

The bag filter magnet is used wherever there is a need to separate metals from liquids and where fabric filters are still used for this separation. The separation efficiency of these fabric filters will be significantly increased by using our filter bag magnet, which will be inserted into the current fabric filter. This results in a double filtration - not only a mechanical (textile filter) but also a magnetic one (the magnet for bag filters is fitted with a magnetic rod generating a magnetic induction of 9,000 G!).

Magnets to be used in Textile Filters

1. These magnetic separators contain very strong Neodymium magnets. Due to that, their separation is very efficient. This separator is to be used in a cloth filter by which the filtration efficiency becomes significantly increased and, at the same time, the cloth filter lifetime becomes prolonged.

2. Composition of the magnetic separator to be used in cloth filters

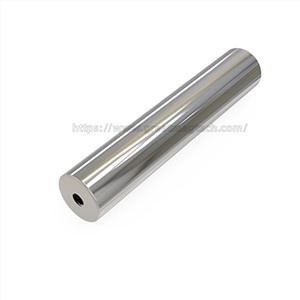

This magnetic separator consists in one or two magnetic rods and a stainless steel carrier into which the rods are inserted. The complete device is then inserted into the cloth sleeve filter. We simplified significantly the magnetic rod fixing in the stainless steel carrier so no screwing is necessary. (It is better not to use full three magnetic rods because the magnetic force between them is very strong and not easy to take out and push in when cleaning.)

3. Own cloth filters commonly catch impurities of up to the size of 20 μm. Our magnets to be used with textile filters have verified magnetic catching impurities in the sizes starting at 1.5 μm. Appropriate tests have been carried out by an accredited testing body.

Benefits of Using the Separator

Material without ferromagnetic impurities

Significant increase in separation quality

Extending the lifetime of textile filters

Reducing the costs of textile filters

Our Advantages

Metal impurity catching of the sizes starting at 1.5 μm

Textile filter lifetime prolongation

High filtration efficiency

Adaptation to your needs

Very easy cleaning due to polished rod surfaces

Safety partition between magnetic rods - injury risk minimizing.

After Sales Service

How to Clean?

We are manufacturing the magnetic rods in a polished version which enhances significantly their cleaning. This is in a good agreement with the non-magnetic ends of these rods so metal particles can be wiped off from the rod easily.

Pull the ring and extract the peg from the magnetic rod hole (the peg is situated on a spring so it holds the magnetic rod in a requested position)

Pull the magnetic rod from the peg located on the lower side of the stainless steel carrier. Now you can clean it from caught impurities comfortably.

Re-installation: install the magnetic rod onto the peg on the lower side of the stainless steel carrier and then, by pulling the ring, extract the upper peg and insert the magnetic rod. The peg will accommodate in the hole prepared in advance on the upper side of the magnetic rod and fix the rod in the stainless steel carrier.

Why Choose GME

1. We have stock magnets and stainless steel raw materials, and the fastest production and delivery only takes 7 days.

2. It can be used in direct contact with food and is harmless, and the quality has been certified.

3. Our magnetic rods are produced with waterproof welding to avoid water penetration during use. Our highest Gaussian can reach 15000GS.

4. We have invested in a new factory for raw materials, and the price cost can be reduced by 20%.
