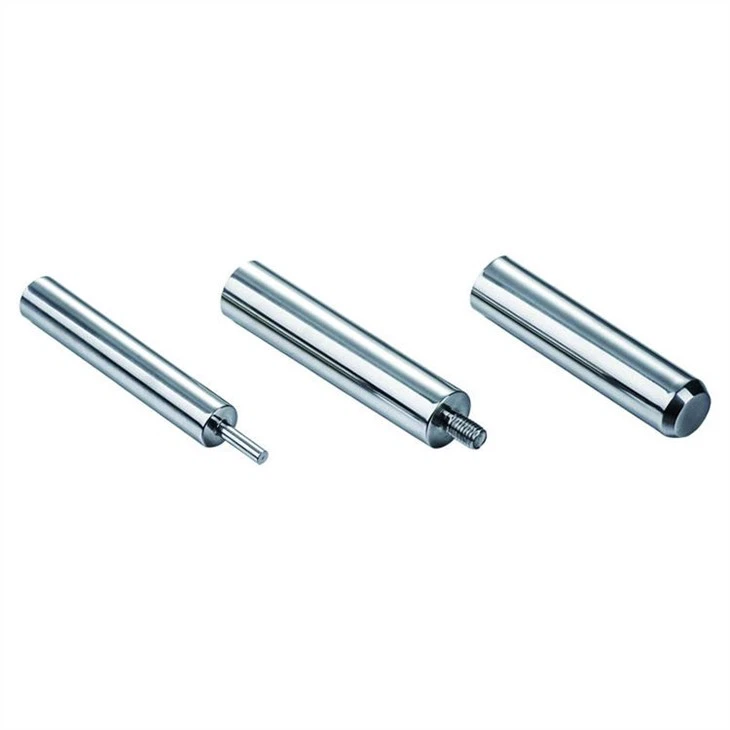

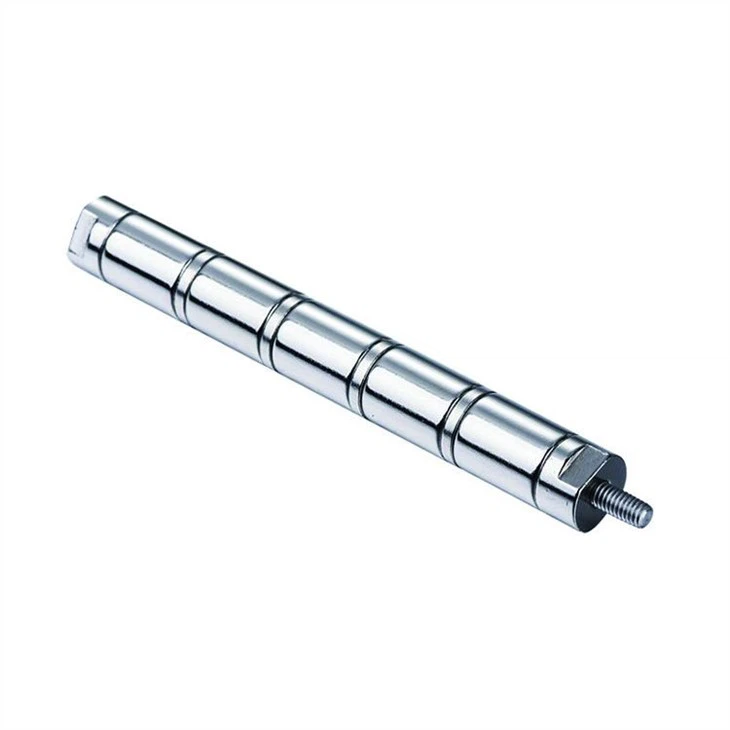

Description of Magnetic Filter Rod

Magnetic Bars are also the building blocks of many magnetic systems and are used to filter product streams for the removal of very fine ferromagnetic and weakly magnetic particles (such as swear debris, rust, stainless steel wear particles, heavy metal impurities as well as plating layer debris from dry or liquid products).

Our magnetic bar magnets are used to clean metal particles or dust from your products. It ensures that your products are purified from metals. In this way, it protects the health of your machines. Our products, which can be easily assembled, can be used in all food companies with their stainless design. It is a material suitable for food standards.

Magnetic Bars Features

It is made of high-attraction neodymium magnets. In this way, it easily absorbs very small metal powders and pieces. Our neodymium magnetic rods offer five times more gauss attraction than ferrite-ceramic magnets. Our products are produced as corrosion resistant.

Magnetic strength	Working Temperature(°C)
Steel tube outside diameter	2500GS	5000GS	6000GS	7000GS	8000GS	10000GS	12000GS	13000GS
Ф6(0.24")	350°C	-	-	-	-	-	-	-
Ф8(0.31")	350°C	-	-	-	-	-	-	-
Ф9(0.35")	350°C	-	-	-	-	-	-	-
Ф10(0.39")	350°C	-	-	-	-	-	-	-
Ф 12(0.47")	350°C	350°C	-	-	-	-	-	-
Ф16(0.63")	350°C	350°C	350°C	-	-	-	-	-
Ф19 (0.75")	350°C	350°C	350°C	180°C	-	-	-	-
Ф20.3(0.80")	350°C	350°C	350°C	180°C	-	-	-	-
Ф22 (0.85")	350°C	350°C	350°C	180°C	180°C	-	-	-
Ф25 (1.00")	350°C	350°C	350°C	180°C	180°C	180°C	180°C	180°C
Ф32 (1.25")	350°C	350°C	350°C	180°C	180°C	180°C	180°C	180°C
Ф38 (1.50")	350°C	350°C	350°C	180°C	180°C	180°C	180°C	180°C
Ф50 (1.75")	350°C	350°C	350°C	180°C	180°C	180°C	180°C	180°C
Ф63(2.48")	350°C	350°C	350°C	180°C	180°C	180°C	180°C	180°C
