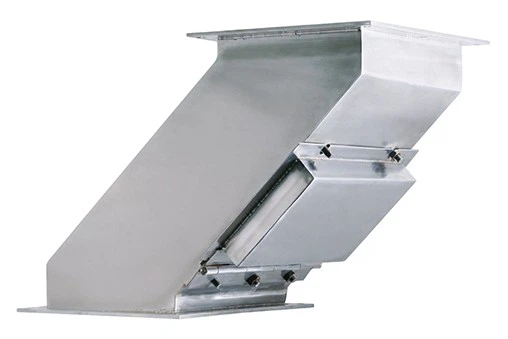

Half Hump Magnet

Hump Magnets are used to remove large pieces of tramp iron as well as ferrous fragments from gravity-flow materials or material flow activated by wind in enclosed flow lines before they reach storage bins or processing equipment. They can be mounted in spouting lines or on the processing machines.

Hump Magnet Separators come in Hump and Half-Hump housings designed for installation in enclosed flow lines or on processing equipment. Housings handle gravity, the angled shape directs the product flow into the magnetic field, helps prevent build-up and bridging, and also breaks up clumps of product for increased protection against entrapped ferrous debris, to improve the efficiency of the separator. Half-Hump Magnets are used where Hump Magnets will not fit because of height restrictions.

Features：

1. One separation unit from the plate magnet.

2. Magnetic plates can be made from rare earth magnets or ferrite magnets as per customer's request, Housing material can be 304 or 316 stainless steel.

3. The design of the angle shape makes the material to flow directly into the magnetic field in order to prevent the material from caking and bridging and even to break up the caked material.

4. Simple structure, easy cleaning, and assembling.

5. Custom-made is available for inlet, outlet, and any other special requirements.

Ferrite  Hump Magnet specifications：

How does it work?

The hinged magnets are gasketed and clamped tightly to the Magnetic hump housing for maximum product and dust containment, during the processing operation. The Magnetic Hump swing is open for the removal of captured tramp metal. The hump magnet's angled shape directs product flow into the magnetic field and helps to prevent build-up and bridging. Additionally, the design of a hump magnet assists in slowing material down, as it forces the material to move through the hump in a zig-zag pattern.

The Magnetic Hump employs two heavy-duty diverter-equipped Spout Magnets positioned so that product flowing through the Magnetic hump is forced into the magnetic fields. Magnetic humps take advantage of the offset flow of the material and insure maximum tramp metal removal from the product flow. The Magnetic Hump Is Ideal for ferrous tramp metal separation in gravity systems. GME Magnetic Hump separators are adaptable to either round pipe or rectangular chute transfer lines.

How to do the cleaning?

To ensure perfect performance, it has to be checked periodically. Once it needs to be cleaned, release the latch and do the wiping. Use extreme caution and wear gloves during the process.

Hump Magnet Packages
