RCDD Self-Cleaning Electromagnetic Separator Product Description
The RCDD type self-cooling and self-unloading electromagnetic iron remover is a device used to automatically remove impurities from powder or block nonmagnetic materials Iron removal device. It is internally cast with electrical resin and has a self-cooling fully sealed structure. It has the advantages of large magnetic penetration depth, strong suction, dust prevention, rain prevention, corrosion resistance, and automatic belt correction, and can still operate reliably in extremely harsh environments.
It is a set of automatic iron unloading mechanisms added to RCDB and RCDY series dry self-cooling electromagnetic iron remover, which will absorb iron during work. The ferromagnetic material on the iron remover is automatically thrown out by the automatic iron unloading mechanism. It is characterized by a wide range of adaptations, stable and reliable work in relatively harsh environments, long life, and convenient use.
RCDD Magnetic Separation Features
1. The computer simulates design in magnetic circuit, and strong magnetic force.
2. The inside uses special resin to cast with a wholly sealed structure.
3. Self-cleaning, easy maintenance, drum-shaped structure, automatic belt-off-position correct.
4. Remote and site control.
5. Eliminate the ferrous material with a weight of 0.1-50kg.
RCDD Self-Cleaning Electromagnetic Separator Product Parameters

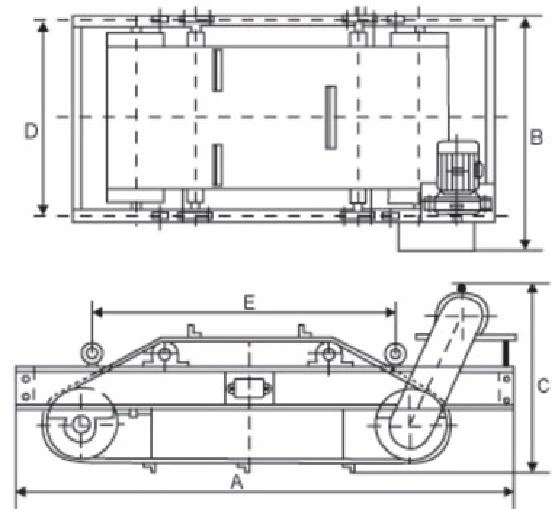

| Model | Belt width (mm) | Suspension Height (mm) | Material depth ≤ mm | Excitation power ≤ kw | Magnetic Intensity ≥ mT | Driving power ≤ Kw | Belt speed ≤ m/s | Weight (kg) | Appearance size mm | ||||
| A | B | C | D | E | |||||||||
| RCDD-5 | 500 | 150 | 100 | 1.2 | 60 | 1.5 | 4.5 | 950 | 2020 | 1040 | 775 | 750 | 1000 |
| RCDD-6 | 600 | 175 | 120 | 2 | 60 | 1.5 | 1380 | 2140 | 1100 | 800 | 800 | 1100 | |
| RCDD-6.5 | 650 | 200 | 150 | 3 | 70 | 2.2 | 1490 | 2275 | 1190 | 820 | 888 | 1250 | |
| RCDD-8 | 800 | 250 | 200 | 4 | 70 | 2.2 | 1770 | 2540 | 1480 | 865 | 1030 | 1350 | |
| RCDD-10 | 1000 | 300 | 250 | 6 | 70 | 3 | 2380 | 2750 | 1635 | 940 | 1230 | 1400 | |
| RCDD-12 | 1200 | 350 | 300 | 8 | 70 | 3 | 3170 | 3000 | 1800 | 1010 | 1505 | 1700 | |
| RCDD-14 | 1400 | 400 | 350 | 12 | 70 | 4 | 4800 | 3500 | 2050 | 1050 | 1674 | 2000 | |
| RCDD-16 | 1600 | 450 | 400 | 14 | 70 | 4 | 6300 | 3900 | 2450 | 1180 | 1874 | 2350 | |
| RCDD-18 | 1800 | 500 | 450 | 20 | 70 | 5.5 | 7800 | 4400 | 2850 | 1290 | 2100 | 2800 | |
Product Application
To remove the iron tramp from the various material on the belt conveyor before crushing.
Service
1. We will offer a suitable iron separator project according to your material and working environment for your reference.
2. We can do the test to confirm the iron separation effect for free.
