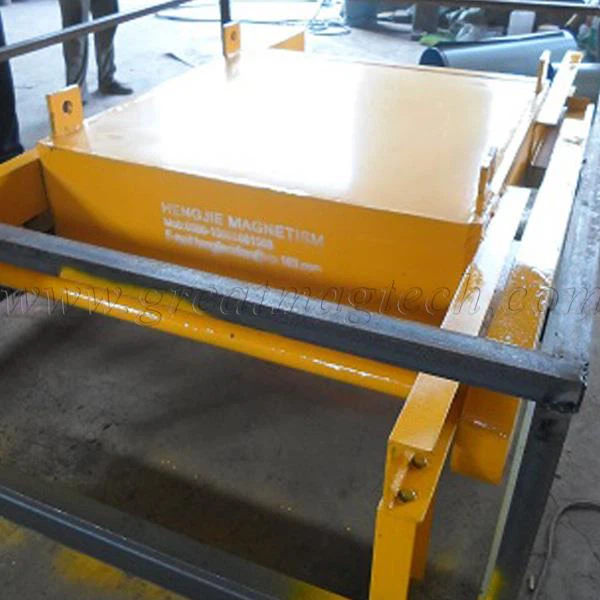

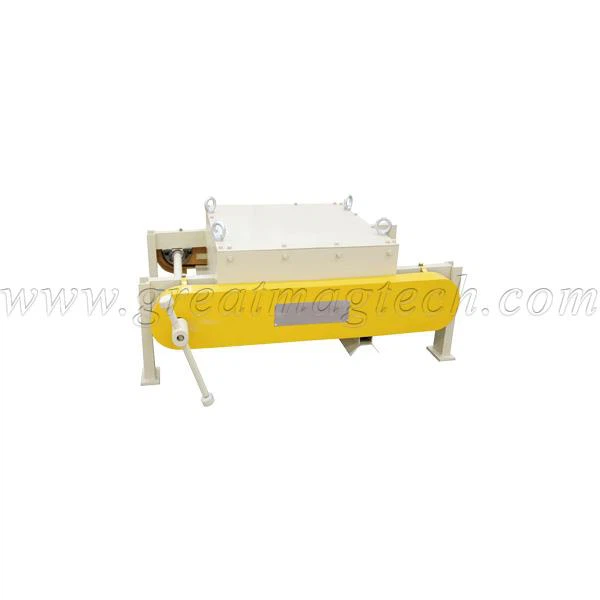

RCYP Permanent Magnet Automatic Self-discharging Magnetic Separator

RCYP permanent magnet manual self-unloading magnetic Separator

The RCYP permanent magnet manual self-unloading iron magnetic Separator is suitable for applications with narrow conveying belts, thin materials and low iron impurities. The machine is simple in structure, reliable in operation, economical, maintenance-free, and free of any noise.

When the ferromagnetic debris adsorbed at the bottom of the magnet accumulates to a certain extent, the handle is manually shaken to drive the scraper to remove the scrap iron.

RCYP series manual permanent magnet separator is a manual iron-removing iron separator composed of high-performance permanent magnet core, unloading chain and chain guard, which is used together with various conveyors. It is used to automatically remove ferromagnetic impurities from non-magnetic materials. Its internal magnetic circuit is designed by computer simulation and has perfect dual magnetic pole structure. When the ferromagnetic debris adsorbed at the bottom of the magnet accumulates to a certain extent, the handle is manually shaken to drive the scraper to remove the scrap iron. Compared with the belt type self-unloading magnetic Separator, this series of products has the characteristics of high quality, low price, economy and practicality.

Features:

      ◆ The magnetic circuit adopts computer simulation design and perfect double magnetic pole structure.

      ◆ High-performance NdFeB material is used as the magnetic source, with high coercive force, high magnetic field strength, large gradient and large suction.

      ◆ Simple structure, no energy consumption, energy saving and environmental protection, and wide application range.

      ◆ Small size, light weight, easy to install and use.
