Rubber Recess Former Description
Rubber Recess Former are made of rubber and have a hemispherical shape. It is designed to open to allow the insertion of pin anchors, and once closed, it provides an adequate seal to prevent concrete from entering. After the concrete is poured and cured, the groove formers are removed to reveal the pin anchors in their pockets. Rubber Recess Former should be oiled and can be used multiple times. Rubber Recess Former are used for easy fixing to formwork. The rubber groove formed in the open position will be placed on the anchor head. Closing the rubber groove former will hold the anchor securely. The rubber groove formers can then be secured to the formwork with the anchors. To secure ball head jacking anchors or installation/deployment anchors to formwork, rubber groove formers must be used. This ensures easy and secure positioning of the anchor and prepares the anchor for the correct universal head lift linkage.
Additionally, formers are available in narrower widths to facilitate placement in thin panels. The former is also available as a non-hinging product with an alternative method of holding the pin anchor in place.
Features of Rubber Groove Forming Machine
The shape remains unchanged even when heated to 120°C or in contact with oil.
Can be used multiple times.
Accommodates the lift clutch during casting.
Molded from a durable rubber compound to ensure longevity in contact with concrete.
The dimensions of each groove former are uniquely designed for the corresponding lift clutch load classification to minimize the risk of error.
Installation of GME Rubber Recess Forme
 |  |  |
| 2. Hold the void former assembly and anchor via the setting bolt | 3. Puddle in anchor until void former is flush with wet concrete |
Specification of Rubber Recess Forme

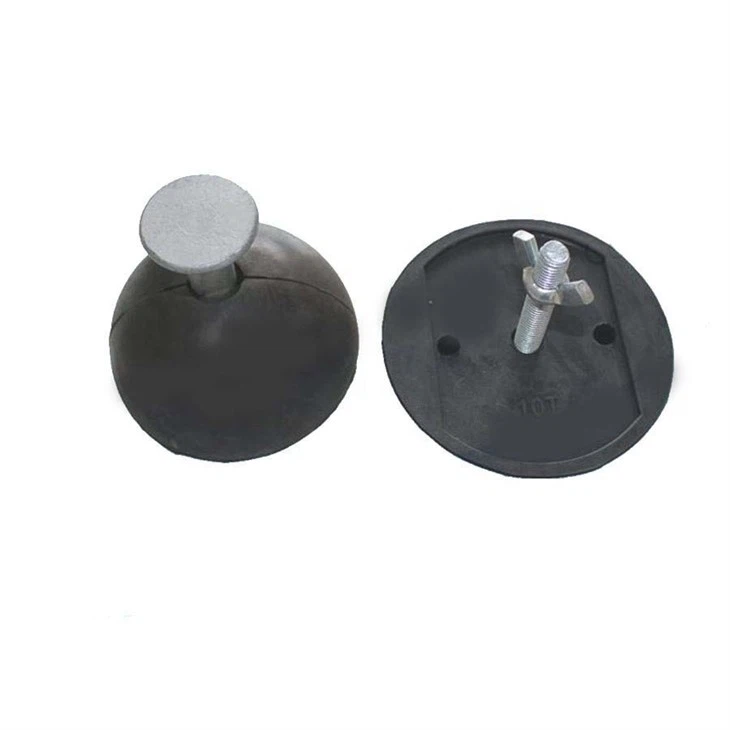

Rubber Recess Former
GME Rubber Recess Former can be used multiple times.
The load mark on the former is easy for the identification of the load group.
Different colors also can be provided.
A permanent thread stud with one wing nut to tighten against the form to hold the former securely.
| ||
| Code | Load group (Tons) | Load Range (Tons) |
| GME1201-1.3 | 1.3 | 1.3 |
| GME1201-2.5 | 2.5 | 2.5 |
| GME1201-5.0 | 5 | 4.0-5.0 |
| GME1201-7.5 | 7.5 | 7.5 |
| GME1201-10.0 | 10 | 10 |
| GME1201-15.0 | 15 | 15 |
| GME1201-20 | 20 | 20 |
| GME1201-32 | 32 | 32 |
Double Head Rubber Recess Former
GME Double Head Rubber Recess Former is used for covering and protecting the Double head lifting anchor from concrete during casting.
| ||
| Code | Load group (Tons) | Load Range (Tons) |
| GME1202-1.3 | 1.3 | 1.3 |
| GME1202-2.5 | 2.5 | 2.5 |
| GME1202-5.0 | 5 | 4.0-5.0 |

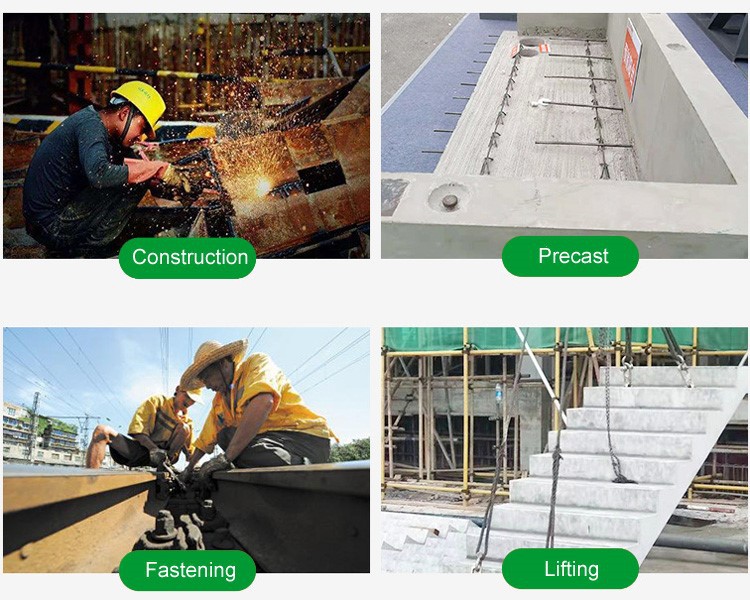

Application of Rubber Recess Forme
Package of Rubber Recess Forme
