RCYG-shaped Pipe Self-unloading Permanent Magnet Separator

RCYG pipe self-unloading permanent magnet separator

RCYG pipeline self-unloading permanent magnet separator is a high-performance automatic iron removal equipment independently developed by us. It has obtained national patent. This equipment is mainly used for cement, slag and other powders.

Overview:

 RCYG series pipeline self-unloading iron remover shall be connected in series and material conveying pipeline. When the material passes through the machine, the iron material is adsorbed on the bottom wall of the pipeline separator, and the iron material gradually changes with the movement of the magnetic group. Sliding to the taphole, when the tapping port is turned, the magnetic material loses its magnetic attraction force and deviates from the magnetic field due to the rotation of the magnetic group in the direction of the circular motion. It naturally falls outside the taphole under the action of gravity. In the iron separation, the principle of parabola is used to throw out the pipe separator to achieve automatic iron removal.

Second, the site requirements:

 1. Material temperature: ≤125°C (when this temperature is exceeded, it can be replaced with high temperature resistant magnet);

  2. The best installation angle pipe inclination: 55 ° -60 °;

  3. Pipe negative pressure: ≥ -50Pa;

  4. Ambient temperature: ≤ 45 ° C;

  5. Use place: indoor (for outdoor use with rain protection facilities);

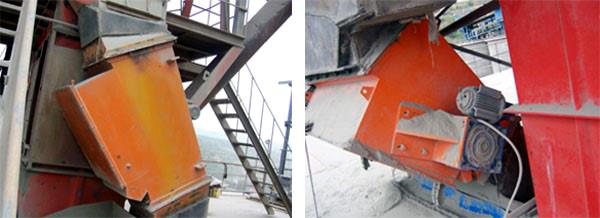

  6. The best installation location: the bucket elevator under the exit.

RCYG series pipe permanent magnet separator includes two parts: non-magnetic pipe and permanent magnet. It is specially used for de-ironing non-magnetic materials in closed pipes. The permanent magnet separator uses high-performance hard magnetic materials to form a composite magnetic system. It has the characteristics of small volume, large magnetic force, light weight, clean iron, convenient, no energy consumption and long service life. Applicable to the case where there is no conveyor belt and only the chute can be provided. When the bulk material passes through the pipeline type permanent magnet iron remover, the iron debris is adsorbed by the high field strength permanent magnet. When the iron impurities are removed, the special gate of the pipeline is opened to remove the impurities. Mainly used in the cutting pipeline of cement, chemical, plastic, refractory materials, building materials and other industries to remove debris.
