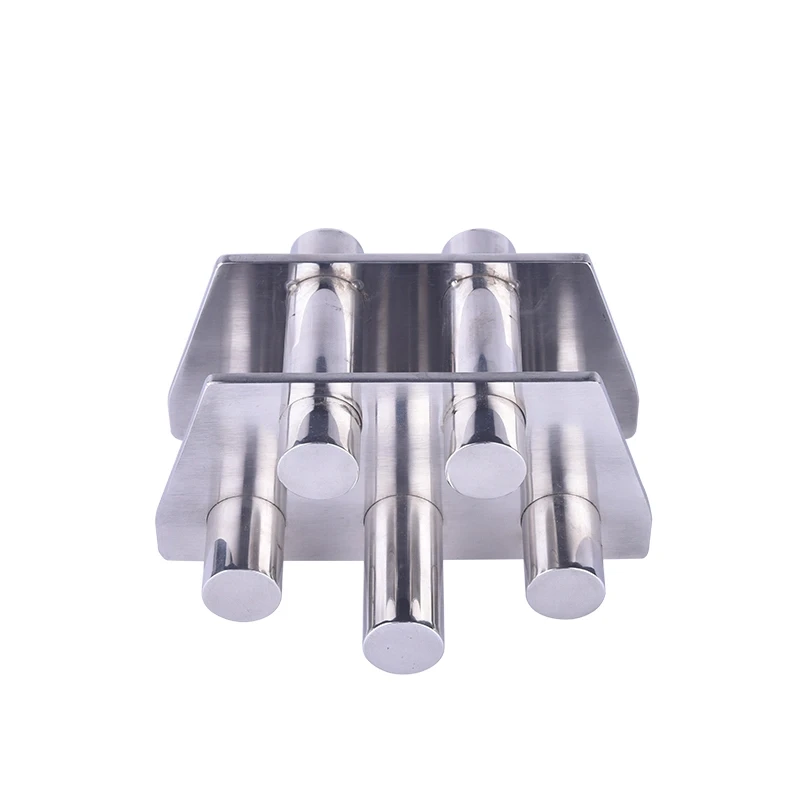

Medical Hopper Magnet Double Layer Magnetic Filter

Medical Hopper Magnet Description

Hopper magnets are useful in many different magnetic separation applications. They use a high-density magnetic field that has been expertly configured for optimal removal of ferrous metal contamination. Ceramic grate magnets excel at removing ferrous fines, fragments, and small metal objects as product flows through them.

Ideal for the removal of ferrous and paramagnetic particulates from a range of dry free flowing products, and therefore suitable for filtration of products within the food, chemical, pharmaceutical, ceramic, animal feed, recycling and gas and oil industries, our Grid Separator is a fully bespoke product and can be designed to fit any size or shape of application.

Magnetic Hopper Optional Features

1. The shell material: SS304, SS316, SS316L;

2. The magnetic strength grade: 6000Gs, 8000Gs,10000Gs, 11000GS, 12000Gs, 13000Gs, 14000Gs;

3. Working temperature grade <: 80, 100, 120, 150, 180, 200 degree Celsius;

4. Various designs available: easy clean type, one layer, multi-layer;

5. Sizes and Shape: any sizes and any shapes, such as square, rectangle, round, oval, triangle, rhombus or irregular polygon;

Various types of grate magnets can be customized according to requirements.

Hopper Magnet Working Principle

Hopper Magnets provide a properly configured, high-density magnetic field to trap and hold ferrous fines, fragments, and small metal objects as product flows through them. Stainless steel tubing and frames are welded into strong, integral units. They can be installed – or simply laid – inside hoppers, housings, and bins – and easily removed for cleaning. Grates are built for low-abrasion applications and should measure at least twice the size of your outlet opening, so as not to restrict product flow.  With a round design, these ceramic grate magnets are easy to install or simply place in housings, bins, and hoppers. After that, all you need to do in the future is remove and clean according to your application needs.

Hopper Magnet Applications

Magnetic grates are designed for product purity for free-flowing materials such as carbon black,

drugs, chemicals, cosmetics, food products, plastics, grains, spices, sugar, honey, salt, and minerals. These units are easily installed in any hopper or floor opening, chute, or duct.

A versatile, powerful, magnet especially for odd-shaped, round, oval or round cornered hoppers for virtually any shape hopper. In operation, the sturdy grid bars positioned over the magnetic element act as baffles to deflect your flow of material onto the magnetic tubes where iron contamination is trapped and held.

Different from the magnetic bar on the market, the stainless steel used in our products is food-grade stainless steel, which means more environmental protection and durability. It can be used in direct contact with food and is harmless, and the quality has been certified.

Magnetic Hopper Advantage

No energy consumption, no pollution

Saving space, easy installation

Simple structure, long service life

 Our hopper magnets are very effective, easy to clean, install, and transport (from one application place to another), practically maintenance-free, and inexpensive to acquire and operate.
