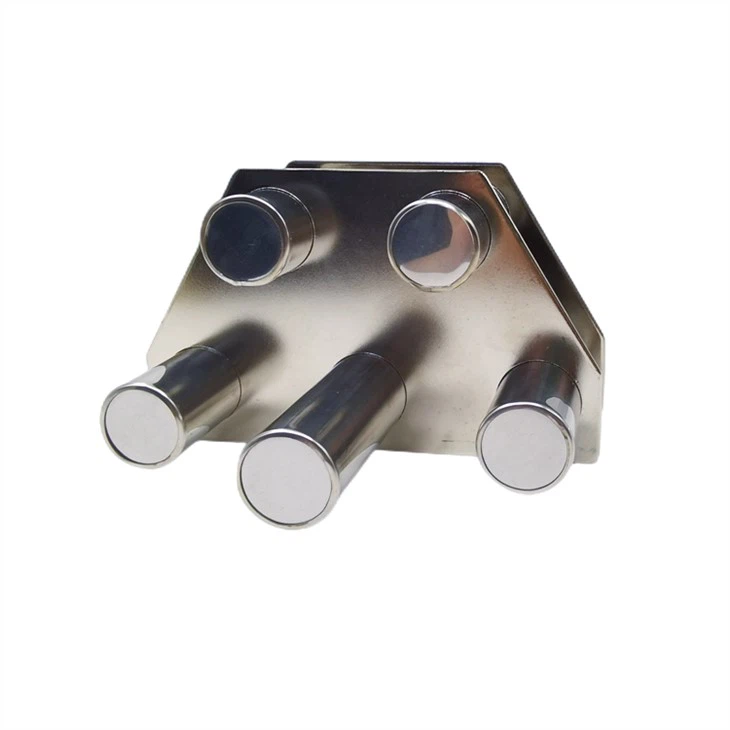

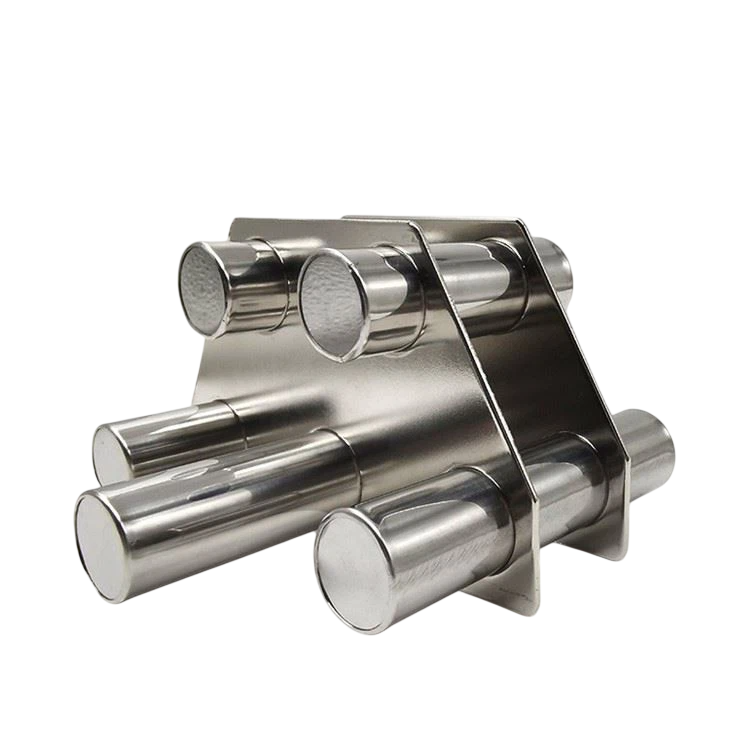

Industrial Magnetic Grate Separators Hopper Magnet
A magnetic grate separator, also known as a grate magnet, magnetic grid, or hopper magnet, is attached to hoppers, chutes, drawers, and bins. This magnetic product is designed to remove unwanted ferrous particles from free-flowing materials such as dry goods, liquids, and slurries.
| Round Magnet Grid/Grate Chart | |||||
| Size | Layer | Height | Center Distance A | Center Distance B | Magnet Bar Quantity |
| φ100 | 1 | 40 | 50mm | 40mm | 2 |
| 2 | 80 | 3 | |||
| φ150 | 1 | 40 | 3 | ||
| 2 | 80 | 5 | |||
| φ200 | 1 | 40 | 4 | ||
| 2 | 80 | 7 | |||
| φ250 | 1 | 40 | 5 | ||
| 2 | 80 | 9 | |||
| φ300 | 1 | 40 | 6 | ||
| 2 | 80 | 11 | |||
| φ350 | 1 | 40 | 7 | ||
| 2 | 80 | 13 | |||
| φ400 | 1 | 40 | 8 | ||
| 2 | 80 | 15 | |||
| φ450 | 1 | 40 | 9 | ||
| 2 | 80 | 17 | |||
| φ500 | 1 | 40 | 10 | ||
| 2 | 80 | 19 | |||
| Square Magnet Grid/Grate Chart | |||||
| Size | Layer | Height | Center Distance A | Center Distance B | Magnet Bar Quantity |
| 100*100 | 1 | 40 | 50mm | 40mm | 2 |
| 2 | 80 | 3 | |||
| 150*150 | 1 | 40 | 3 | ||
| 2 | 80 | 5 | |||
| 200*200 | 1 | 40 | 4 | ||
| 2 | 80 | 7 | |||
| 250*250 | 1 | 40 | 5 | ||
| 2 | 80 | 9 | |||
| 300*300 | 1 | 40 | 6 | ||
| 2 | 80 | 11 | |||
| 350*350 | 1 | 40 | 7 | ||
| 2 | 80 | 13 | |||
| 400*400 | 1 | 40 | 8 | ||
| 2 | 80 | 15 | |||
| 450*450 | 1 | 40 | 9 | ||
| 2 | 80 | 17 | |||
| 500*500 | 1 | 40 | 10 | ||
| 2 | 80 | 19 | |||
Features:
1. Put the magnetic grid in the oil cylinder or in the hopper of the plastic machinery such as injection molding machine, extrusion machine, or film blowing machine, which can absorb kinds of the metal materials mixed in the raw materials to prevent their entry into the material cylinder or oil cylinder and valve body, to ensure normal production.
2. Magnetic grate is a permanent magnet filter type separator, tube surface magnetic force amounts to 2000 Gauss, with double iron removing insurance, iron removal efficiency is more than 99%;
3. Grate magnet is made of stainless steel, acid corrosion, no magnetic force reduction using below 300°C, the frame body is firm and permanent use.
4. Get the magnetic grid from the package, just put into the hopper and no need any other accessories installation, can repeated use and very convenient.
5. Grid magnet with square and circular two series of more than 10 kinds of specifications, suitable for square hopper and circular hopper respectively, can also be customized according to customer requirements.
OEM Service
The magnetic grate can be of various kinds of shapes, such as square, rectangle, round, oval, triangle, rhombus, or irregular polygon, to suit different production lines. The overall construction of the Magnetic Grill can also be made as per the customer specification and sizes.
