Bonded Ring NdFeB Magnet Description
Bonded NdFeB magnets, i.e. bonded neodymium iron boron magnets, are those permanent magnetic materials made of rapidly quenched NdFeB magnetic powders combined with resin binders (epoxy, Nylon/polyamide (PA), polyphenylene sulfide (PPS), etc). They are manufactured through a bonded process (compression, injection, extrusion or calendaring molding), so it is possible to obtain complex geometries with high dimensional precision. Controlling the performance and proportion of NdFeB magnetic powders, it can adjust the magnets' magnetic properties in a continuous range. Due to their complex geometries availability, high dimensional precision, uniform magnetic properties, diverse magnetization patterns, good corrosion resistance and mechanic properties, bonded NdFeB magnets are widely applied in spindle motors, micro-motors, direct current (DC) motors, synchronous motors, power tools, magnetic rollers, Hall effect sensors, etc.
Size: D47.4×44.6×11.5
Guass: 1700-1800GS
Br: 7.20±0.2(KGs)
Hcj: 9.00±0.3(Koe)
Coated: Black Electrophoresis
Surface Treatment: poxy, Nickel, Parylene...
Magnetization Direction: 14 poles inside

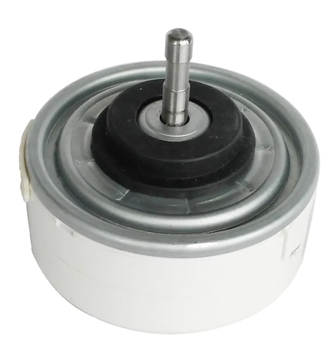

Bonded Ring NdFeB Magnet Application
This specification product is used in floor scrubber motors. Floor scrubber motors mainly use the magnetic field and magnetic force generated by the current to drive the motor to rotate. By using transmission devices such as belts, gears, and chains, the motor's speed and torque are transmitted to equipment such as brushes or vacuum heads to achieve cleaning functions such as floor scrubbing or vacuuming. NdFeB magnets can also drive the motor to rotate by controlling the current to form a speed-regulating device. Users can adjust the motor speed according to specific cleaning requirements to meet different cleaning needs.
Advantage Bonded Magnet
| Feature/Material Type | Bonded NdFeB | Sintered NdFeB |
| Manufacturing Process | Press molding or injection molding | Powder metallurgy process |
| Dimensional Accuracy | High | Moderate |
| Shape Complexity | Capable of complex shapes | Relatively simple shapes |
| One-time Molding Capability | Yes | No |
| Mechanical Strength | High | High |
| Magnetic Performance | Lower than sintered NdFeB | High |
| Application Fields | Office automation equipment, audio-visual equipment, small motors, etc. | Electronics, electrical machinery, medical devices, aerospace, etc. |
| Surface Treatment | Requires surface coating or plating | Usually requires aging heat treatment |
| Cost | Lower | Higher |
| Specific Gravity | Light | Heavy |
| Magnetic Performance Example | Br=6.53KGs, Hcb=5.41KOe, Hcj=9.14KOe, (BH)m=9.12MGsOe | Varies depending on grade with different Br, Hcj, (BH)max parameters |

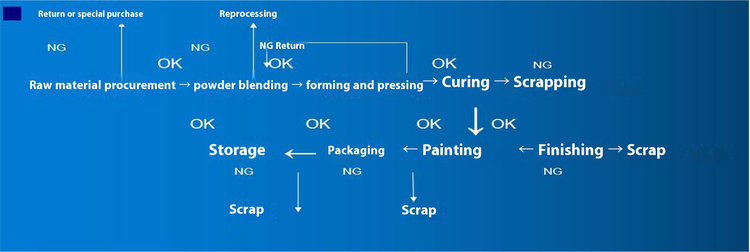

Flow Chart of Bonded NdFeB Magnet

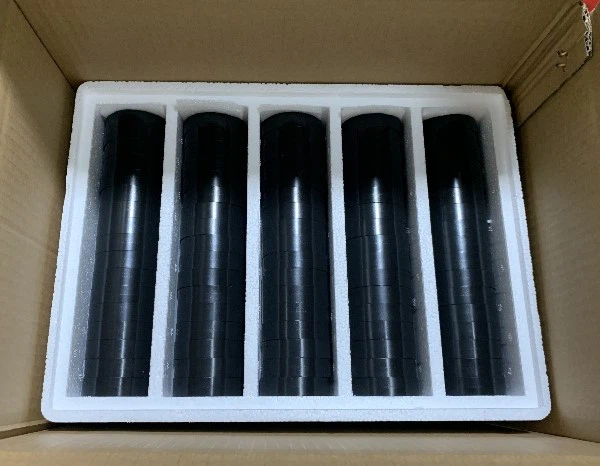

Bonded Neodymium Magnets Package

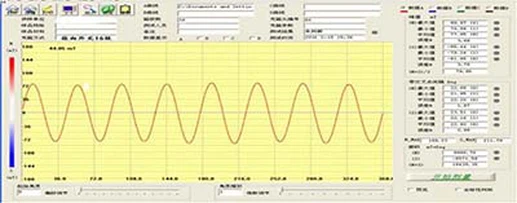

Quality Assurance
Our products are manufactured to exacting standards and are manually and machine inspected to meet your specifications.
Factory Equipment
The factory has several large-scale magnet processing equipment, decades of industry processing and customization, and the products have smooth appearance and stable magnetism. Now it has hundreds of sets of magnet molds, and professional technicians can support mold customization and free sample testing. One-to-one sales specialists provide customers with product evaluation solutions and after-sales services, and support replacement if there is any objection to product quality.
Safety Notes for the Application and Storage of Bonded Magnets
Do not place magnets near a person wearing electrical medical equipment, such as a pacemaker, because the magnet may result in a malfunction of the equipment and endanger a person's life.
Keep magnets away from magnetic memory media or other magnetic field-sensitive devices such as magnetic cards, tapes, floppy disks, hard disk drivers, and watches. Otherwise, information stored in the media or the devices may be damaged.
Big blocks of magnet will strongly attract each other or attract iron steel pieces, which may cause serious injuries to a person.
Relatively weak in strength, bonded magnets may break into pieces when collide with other materials. Be careful in assembling magnets and prevent fine fragments from entering into the eyes or causing other injuries.
Keep magnets in good condition and avoid the following environment in case the magnets become rust or weaken in mechanical or magnetic strength< With acid, alkali, organic solvent, or electrolytes.
Service Team
GME works hard to satisfy our clients by supplying them with knowledgeable staff who can offer innovative solutions to meet their needs. In addition to technical support, we can customize magnets based on the requirements and designs issued by our customers.
Proven track record with 7 years of experience
Meticulous quality control
High-quality, patent-licensed neodymium magnets
24*7 hour online reply
Customized design is available. OEM&ODM are welcome.
Special discount and protection of sales area provided to our distributor.
